Flash Profiler

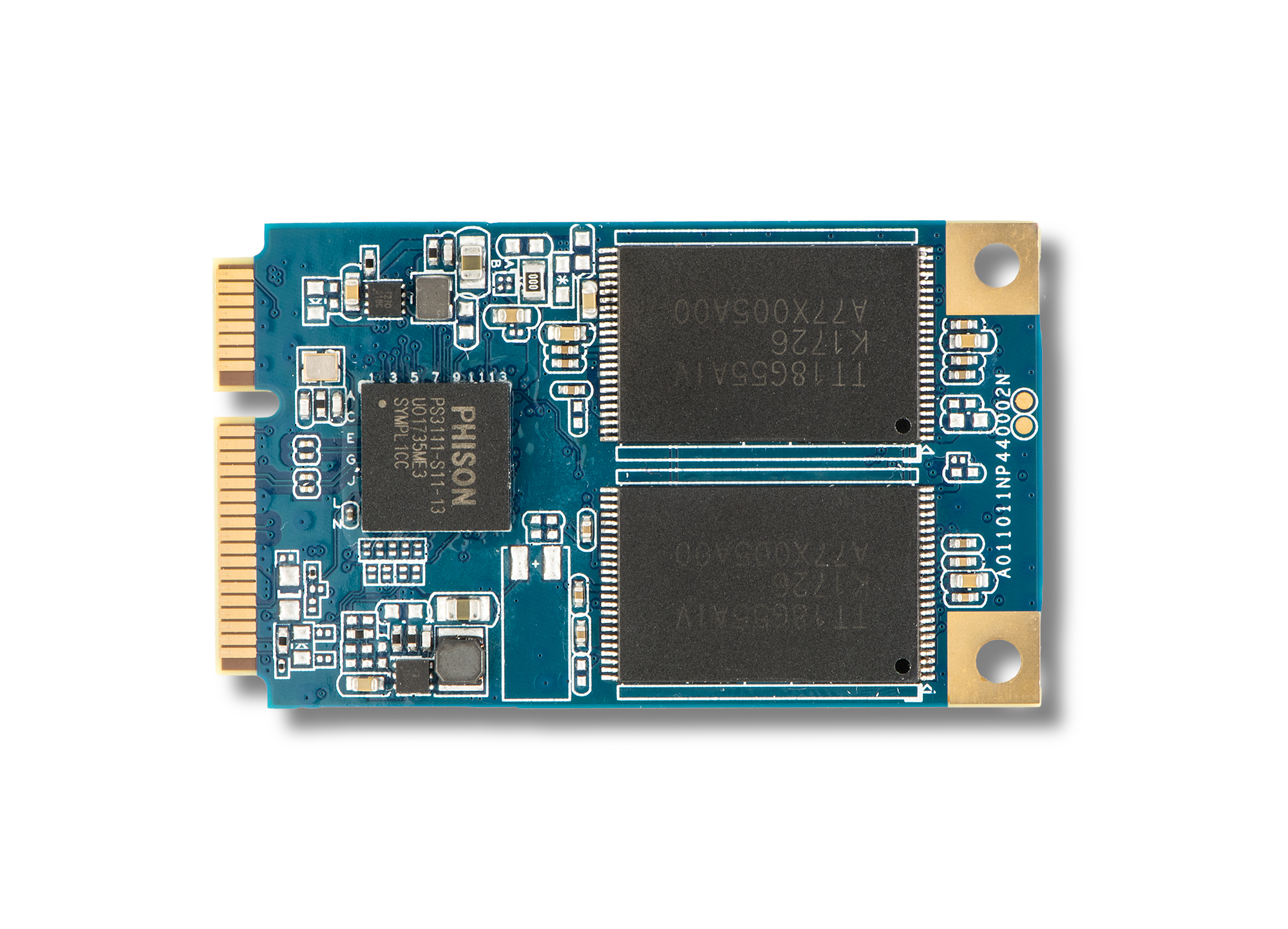

acon LX411 - Industrial mSATA III SSD

acon Industrial mSATA delivers all the advantages of flash disk technology with the Serial ATA Interface and is fully compliant with the standard mSATA form factor, known as JEDEC MO-300 standard. The power consumption of the mSATA is much lower than traditional hard drives, making it the best embedded solution for new platforms.

Model Nr.
LX411 Industrial mSATA
Form Factor
MO-300 SATA III
Kapazität
8GB - 128GB
Flash Typ
pSLC
Endurance
20.000 P/E Cycles
Standard Temperatur
0C bis +70C
Erweiterte Temperatur
-40C bis +85C
Lesegeschwindigkeit
550MB/s
Schreibgeschwindigkeit
490MB/s

acon LX411 - Seal mSATA III SSD

acon Seal mSATA products will be fully coated with a special sealing compound, which hermetically seals the sensitive electronic components within and protects your data reliably against liquids, dust, dirt, shock and vibration. acon Seal mSATA delivers all the advantages of flash disk technology with the Serial ATA Interface and is fully compliant with the standard mSATA form factor, known as JEDEC MO-300 standard.

Model Nr.
LX411 Seal mSATA
Form Factor
MO-300 SATA III
Kapazität
8GB - 128GB
Flash Typ
pSLC
Endurance
20.000 P/E Cycles
Standard Temperatur
-
Erweiterte Temperatur
-40C bis +85C
Lesegeschwindigkeit
550MB/s
Schreibgeschwindigkeit
490MB/s
Coating
elektronisches Gießharz

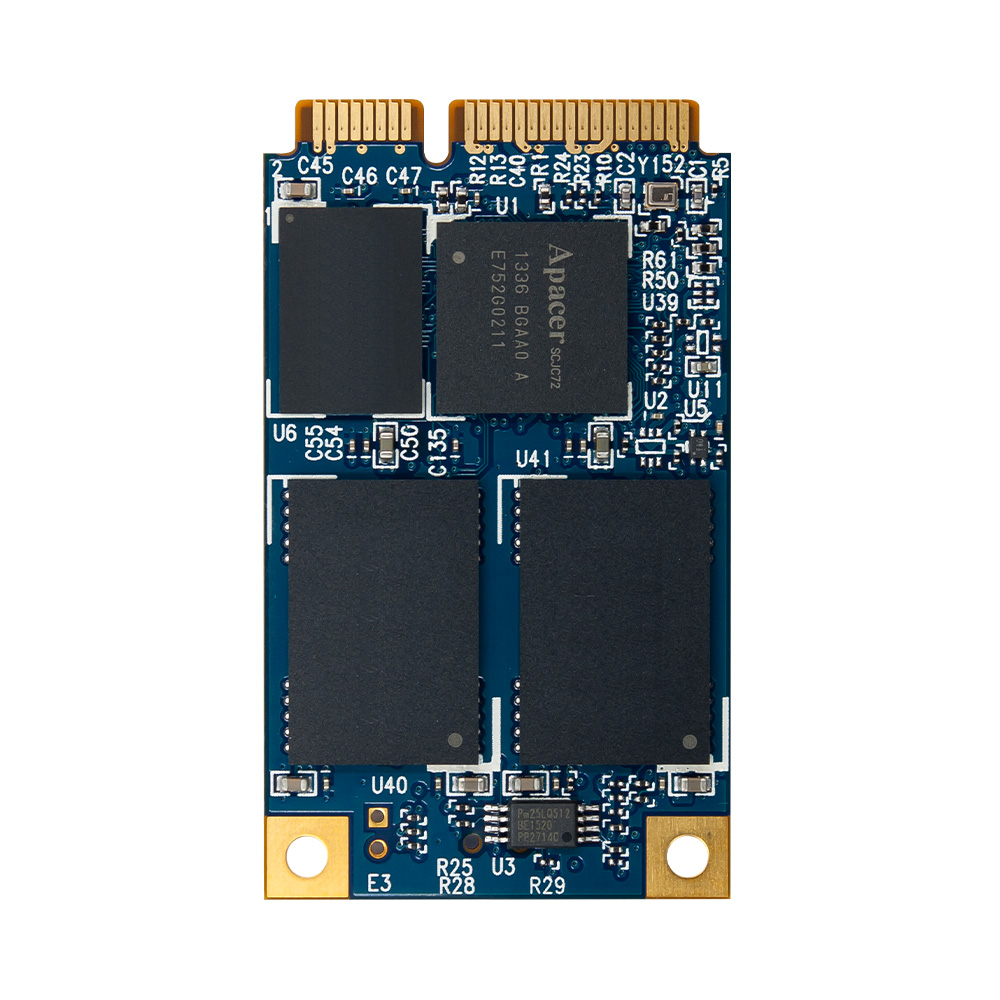

Apacer mSATA SU210-300

Apacer SU210-300 is a well-balanced solid-state disk (SSD) drive with compact form factor (JEDEC MO-300) and great performance. Designed in SATA 6.0 Gbps interface, the mSATA SSD is able to deliver exceptional read/write speed, making it the ideal companion for heavy-loading embedded or server operations with space constraints for host computing systems.
For data efficiency, the internal controlling unit of the mSATA SSD is engineered with DRAM for enhanced random performance. With Apacer's SLC-lite technology, the mSATA SSD performs with higher number of P/E cycles up to 20,000 times and comes with various implementations including powerful hardware ECC engine, power saving modes, wear leveling and flash block management.

Model Nr.
SU 210-300
Form Factor
MO-300 SATA III
Kapazität
8GB - 256GB
Flash Typ
SLC-Lite
Endurance
20.000 P/E Cycles
Standard Temperatur
0C bis +70C
Erweiterte Temperatur
-40C bis +85C
Lesegeschwindigkeit
555MB/s
Schreibgeschwindigkeit
460MB/s

Cactus mSATA Modules Series 245

The Cactus mSATA (aka Mini-SATA and MO-300) products are designed to the industry standard JEDEC MO300B and SATA-IO group’s specifications. They are intended for applications which demand extremely high performance and medium endurance in a rugged embedded foot print guaranteed to MIL-810 Standard shock and vibration.

Model Nr.
KD8GF-245SM1
Interface
mSATA III
Kapazität
4GB - 256GB
Flash Typ
pSLC
Endurance
20.000 P/E Cycles
Standard Temperatur
0C bis +70C
Erweiterte Temperatur
-40C bis +85C
Lesegeschwindigkeit
540MB/s
Schreibgeschwindigkeit
450Mb/s

Innodisk mSATA 3IE3 effectively reduces the booting time of operation system and the power consumption is less than hard disk drive (HDD), and complies with ATA protocol, no additional drives are required, and can be configured as a boot device or data storage device.

Model Nr.
mSATA 3IE3
Interface
MO-300A SATA III 6.0 Gb/s
Kapazität
8GB~256GB
Flash Typ
iSLC
MTBF (Std.)
>3 million hours
Standard Temperatur
0C bis +70C
Erweiterte Temperatur
-40C bis +85C
Lesegeschwindigkeit
440 MB/s
Schreibgeschwindigkeit
230 MB/s

StorFly® mSATA (MO-300) SSDs are optimal storage solutions for medical, networking and embedded applications that require high performance in a small form factor.
StorFly mSATA offers a superior solution for system designs that implement SATA connectivity over a widely-used socket that has the added benefit of industry-standard clamping mechanism, making them ideal for wearable or vehicle computers and other high shock and vibration applications.
in many military and ruggedized portable computers and data recorders.

Model Nr.
XE
Interface
mSATA SATA III
Kapazität
16GB-480GB
Flash Typ
iMLC
MTBF (Std.)
200 TSD
Standard Temperatur
0C bis +70C
Erweiterte Temperatur
-40C bis +85C
Lesegeschwindigkeit
520MB/s
Schreibgeschwindigkeit
300MB/s
