Flash Profiler



acon microSD Card M/MX30

acon Industrial/Automotive microSD 3.0 card is one of the most popular cards today based on its high performance, good reliability and wide compatibility.

Model No.
M/MX30
Interface
SD 3.0
Capacity
4GB - 128GB
Flash Type
MLC
Endurance
3.000 P/E Cycles
Standard Temperature
-25C bis +85C
Extended Temperature
-40C bis +85C
Performance
SR: 95MB/s | SW: 90MB/s
DRAM
No

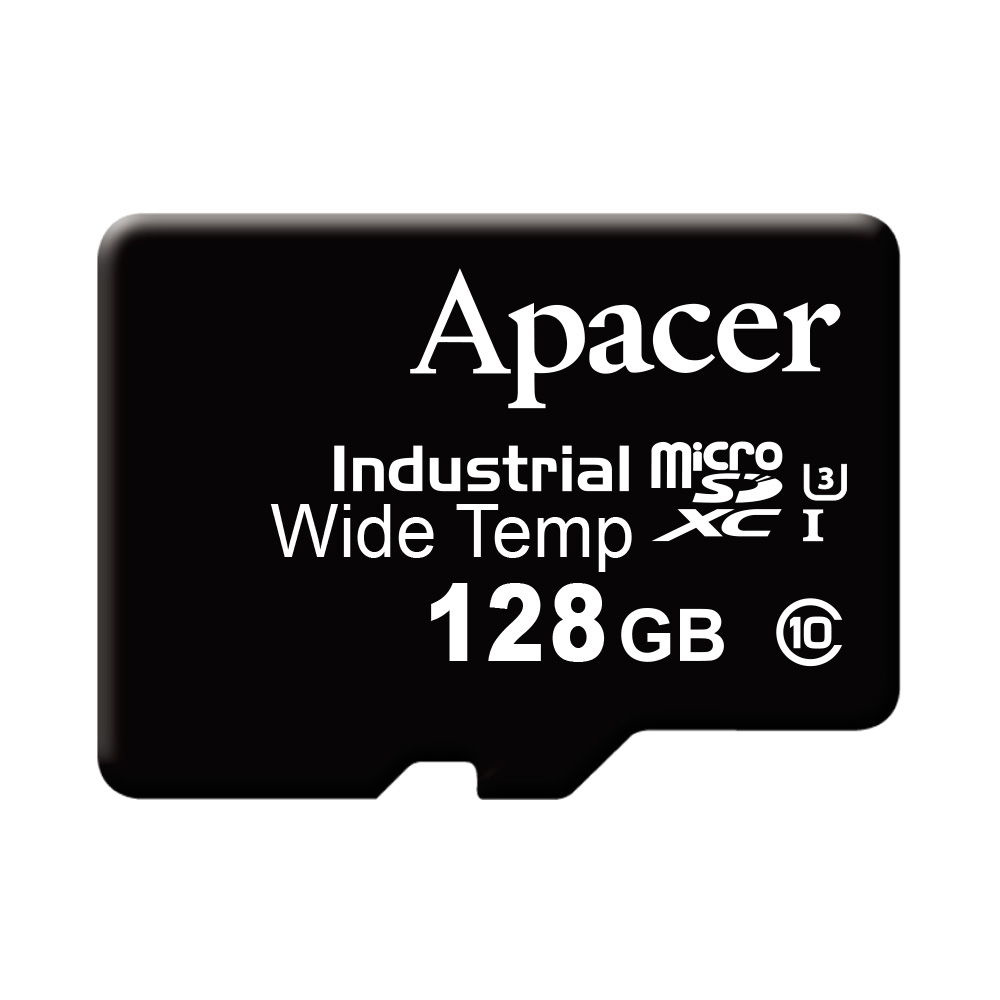

Apacer microSD Card 3.0 H1-M

Apacer Industrial micro Secure Digital 3.0 card is ideal for its high performance, good reliability and wide compatibility. Not to mention that it’s well adapted for hand-held applications in semi-industrial/medical markets already.

Model No.
H1-M
Interface
SD 3.0
Capacity
4GB - 128GB
Flash Type
MLC
Endurance
3.000 P/E Cycles
Standard Temperature
-25C bis +85C
Extended Temperature
-40C bis +85C
Performance
SR: 44MB/s | SW: 36MB/s

Cactus microSD Card Series 240

Cactus Technologies Commercial Grade microSD Card is a small form factor, highly reliable, high endurance flash storage device which conforms to the SD Associations microSD specifications. It is designed with the highest quality SLC NAND for applications which demand data integrity and 100% uptime.

Model No.
KS8GR-240M
Interface
SD 3.0
Capacity
8GB - 32GB
Flash Type
MLC
Endurance
3.000 P/E Cycles
Standard Temperature
-25C bis +85C
Extended Temperature
--
Performance
SR: 85MB/s | SW: 50MB/s
DRAM

No

Apacer microSD Card 3.0 H2-M

Apacer SD H2-M is compatible with the SD card version 5.1. The command list supports [Physical Layer Specification Ver5] definitions. Card Capacity of Non-secure Area, Secure Area Supports [Security Specification Ver5] Specifications.
Random performance of SD H2-M is much more enhanced than H1-M. The maximum transfer speed can be achieved along with UHS-I compliant devices. Besides, Video Speed Class is compliant with V10 and V30, which are mainly useful for camcorders, video recorders and other devices with video recording capabilities. With V10 and V30 speed mode, SD card is recommended for high resolution and high quality 4K video recording.
Apacer SD H2-M card is also compliant with Application Performance Class A1, optimized for 4K small file random read/write IOPS, delivering minimum read/write performance at 1,900/800 IOPS at least.

Model No.
H2-M
Interface
SD 5.1
Capacity
4GB - 32GB
Flash Type
MLC
Endurance
3.000 P/E Cycles
Standard Temperature
-25°C bis +85°C
Extended Temperature
-40C bis +85C
Performance
SR: 90 MB/s | SW: 42MB/s
DRAM
No

Model Nr.
SDSDQAE
Form Factor
microSD 3.0 U3
Kapazität
32GB - 128GB
Flash Typ
MLC
Standard Temperatur
-25C bis +85C
Erweiterte Temperatur
-
Lesegeschwindigkeit
50MB/s
Schreibgeschwindigkeit
80MB/s

Model Nr.
SDSDQAD
Form Factor
microSD 3.0 U1
Kapazität
16GB - 200GB
Flash Typ
MLC
Standard Temperatur
-25C bis +85C
Erweiterte Temperatur
-
Lesegeschwindigkeit
40MB/s
Schreibgeschwindigkeit
10MB/s

Model Nr.
SDSDQAB
Form Factor
microSD 2.0
Kapazität
8GB - 64GB
Flash Typ
MLC
Standard Temperatur
-25C bis +85C
Erweiterte Temperatur
-
Lesegeschwindigkeit
20MB/s
Schreibgeschwindigkeit
5Mb/s

Model Nr.
SDSDQAF2
Form Factor
microSD 3.0
Kapazität
32GB - 64GB
Flash Typ
MLC
Standard Temperatur
-25C bis +85C
Erweiterte Temperatur
-
Lesegeschwindigkeit
20MB/s
Schreibgeschwindigkeit
20MB/s

Model Nr.
SDSDQAF
Form Factor
microSD 3.0
Kapazität
8GB - 64GB
Flash Typ
MLC
Standard Temperatur
-25C bis +85C
Erweiterte Temperatur
-
Lesegeschwindigkeit
20MB/s
Schreibgeschwindigkeit
20Mb/s
