Flash Profiler
M.2 2280




acon M.2 2280 SATA III SSD M/MX410

acon Industrial M.2 2280 SSD is a new SSD module designed for embedded systems applied for industrial platforms. acon industrial 2280 SSD offers a universal temperature range for operation, 0°C - 70°C and -40°C - 85°C and a capacity up to 64GB.

Model No.
M/MX410
Interface
SATA III 6.0 Gb/s
Capacity
4GB - 64GB
Flash Type
MLC
Endurance
3.000 P/E Cycles
Standard Temperature
0°C +70°C
Extended Temperature
-40°C +85°C
Performance
SR: 555MB/s | SW: 490MB/s
DRAM
No

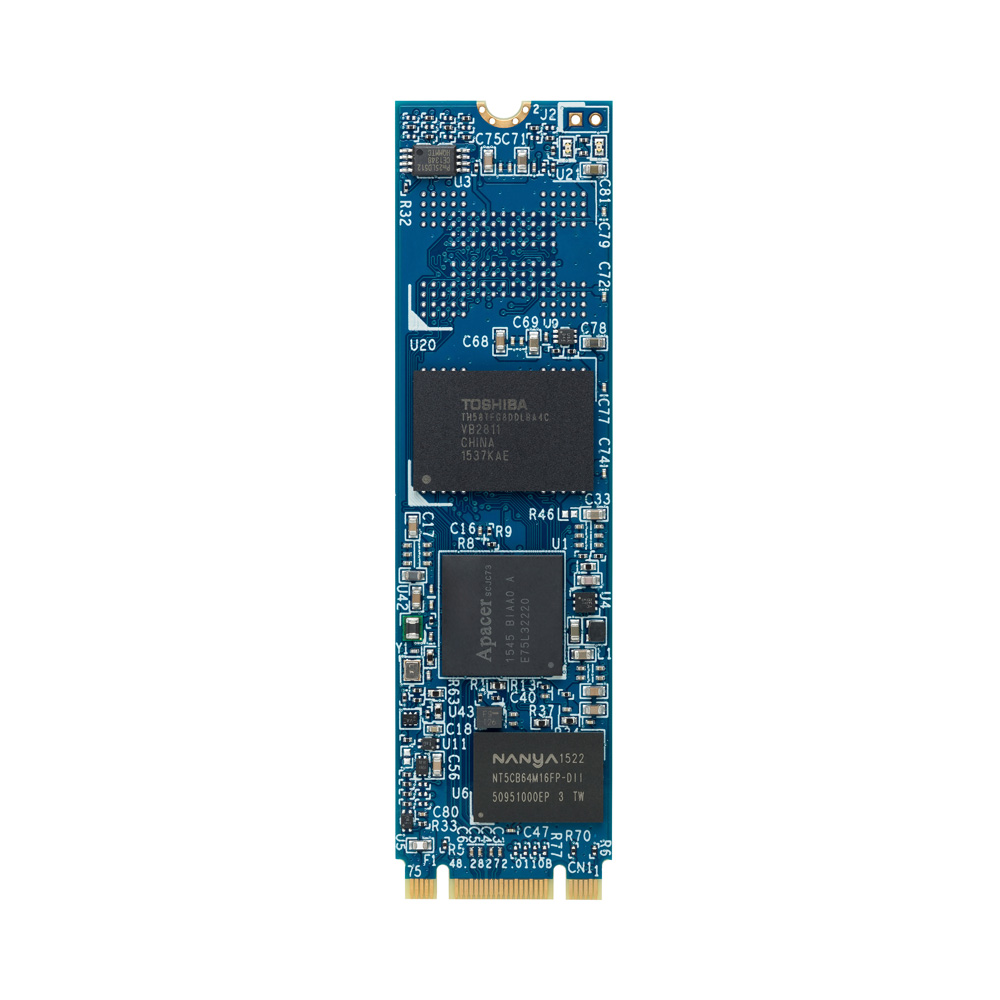

Apacer M.2 2280 SATA III SSD SM210-M280

SM210-M280 is the next generation modularized Solid State Drive (SSD) with the shape of M.2 form factor, aimed to be the more suitable for laptop and server with standard width at only 22.00 mm. SM210-M280 appears in M.2 2280 mechanical dimensions and is believed to be the leading add-in storage solution for future host computing systems.
The M.2 SSD is designed with SATA-based connector pinouts, providing full compliance with the latest SATA Revision 3.2 interface specifications. Aside from SATA compliance, SM210-M280 delivers exceptional performance and power efficiency.
Regarding reliability, SM210-M280 is built with a powerful SATA controller that supports on-the-module ECC as well as efficient wear leveling scheme. In terms of power efficiency, SM210-M280 is compliant with SATA 6.0 Gbps interface standard so that it can operate on SATA power management modes, which greatly save on power consumption.

Model No.
SM210-M280
Interface
SATA III 6.0 Gb/s
Capacity
32GB - 512GB
Flash Type
MLC
Endurance
3.000 P/E Cycles
Standard Temperature
0°C +70°C
Extended Temperature
-40°C +85°C
Performance
SR: 510MB/s | SW: 475MB/s
DRAM
Yes

Cactus M.2 2280 SATA III SSD Series 240

The Cactus Technologies 240S Series Commercial Grade M.2 (also known as NGFF – Next Generation Form Factor) in the 2260 form factor (22mm x 60mm) and 2280 (22mm x 80mm), available in capacities up to 256 Gbytes, is a solid-state flash memory product that adheres to the SATA-IO group’s specifications. Based on MLC NAND, it is intended for OEM applications needing a cost effective part with high performance SATA interface.
The 240S Series M.2 2260 & 2280 come with full BOM Control and are built with Stringent Quality Processes. Cactus Technologies incorporates World Class ECC, Wear Leveling and Defect Management into the 240S Series M.2, making it the most reliable MLC based M.2 on the market.

Model No.
KD256GR-240SM7
Interface
SATA III 6.0 Gb/s
Capacity
64GB - 256GB
Flash Type
MLC
Endurance
3.000 P/E Cycles
Standard Temperature
0°C +70°C
Extended Temperature
-40°C +85°C
Performance
SR: 540MB/s | SW: 450MB/s
DRAM
No
