Flash Profiler
Add In Card

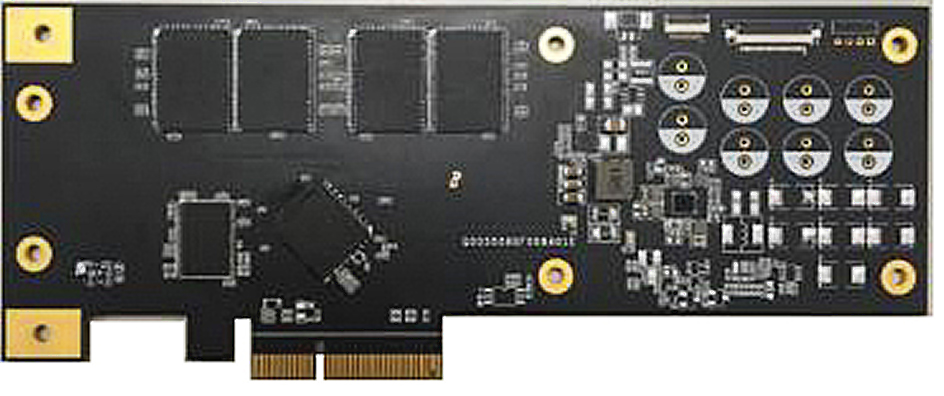

acon Add In Card PCIe T/TX200

acon’s AIC PCIe SSD delivers all the advantages of flash disk technology with PCIe Gen3 x2 interface, including being compliant with standard AIC(Add-In Card) HHHL form factor. acon’s AIC offers a wide range of capacities up to 1024GB and its performance can reach up to 1600 MB/s1 (for read) and 1100 MB/s1 (for write) based on Toshiba BiCS3 TLC NAND flash with the choice of 256MB/512MB/1GB DDR3L2. Moreover, the power consumption of acon’s AIC is much lower than traditional hard drives, making it the best embedded solution for new platforms.

Model No.
T/TX200
Interface
PCIe Gen. 3x2
Capacity
128GB - 1TB
Flash Type
3D TLC
Endurance
3.000 P/E Cycles
Standard Temperature
0°C +70°C
Extended Temperature
--
Performance
SR: 1.600MB/s | SW: 1.100MB/s
DRAM
Yes
