Apacer ECC SO-DIMM DDR5

Apacer’s industrial DDR5 ECC SODIMM employ original high-quality DRAM Ics. They incorporate an on-die ECC mechanism that greatly strengthens the reliability, availability and serviceability of the DRAM IC. On the other hand, Apacer's DDR5 modules incorporate a power management IC (PMIC) on the module itself to control the system’s load while also improving signal integrity and compatibility. Moreover, DDR5 modules require just 1.1V, which will translate into significant power savings and reduced heat generation.

ECC SODIMM (ECC Small Outline DIMM) is a JEDEC-compliant module that is especially designed for microservers, workstations, networking platforms and embedded systems. Manufactured with the highest quality original DRAM chips, it supports ECC function to detect and correct data errors, and a built-in temperature-monitoring thermal sensor to prevent overheating and improve the

Module Type
ECC SO-DIMM DDR5
Memory Technology
DDR5
Frequency
4800/5600
Density
16GB - 32GB
Voltage
1.1v
PIN Count
262-Pin
Width
72-Bit
PCB Height
1.18"
Operational Temperature
0°C +85°C

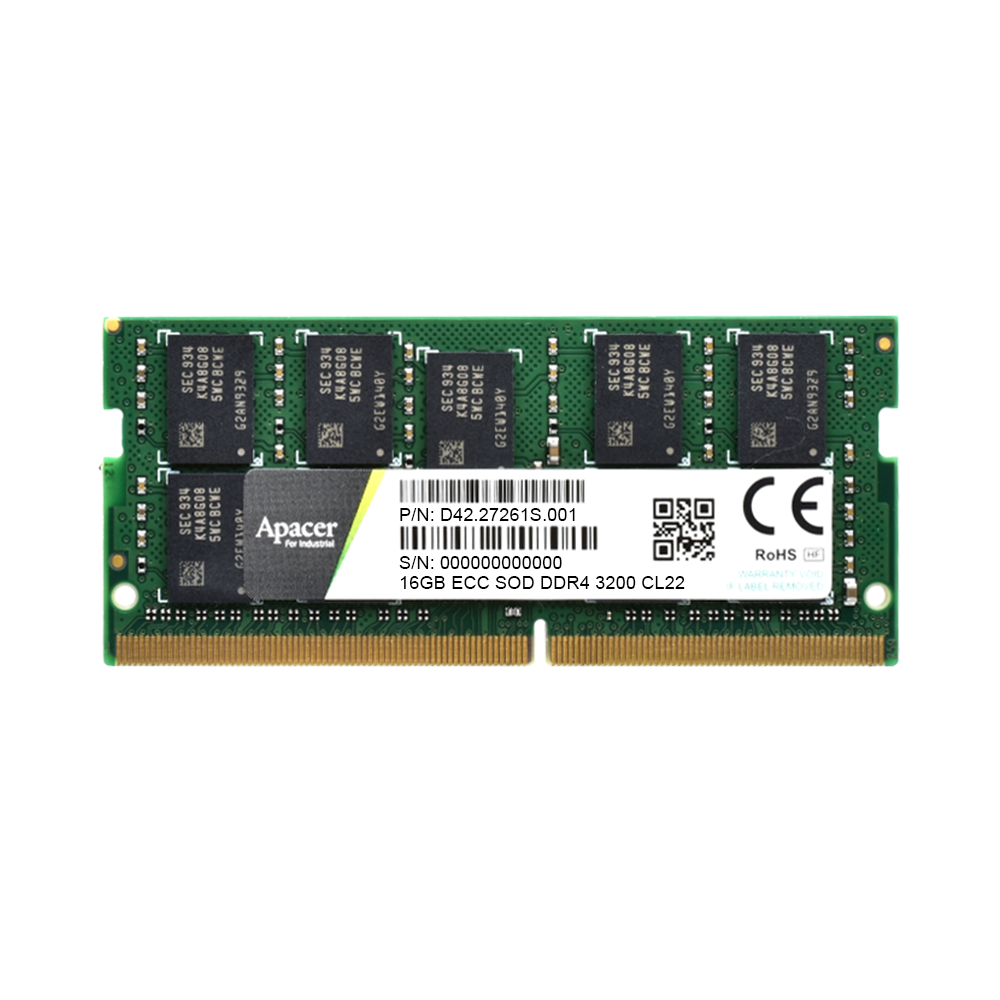

Apacer ECC SO-DIMM DDR4

ECC SODIMM (ECC Small Outline DIMM) is a JEDEC-compliant module that is especially designed for microservers, workstations, networking platforms and embedded systems. Manufactured with the highest quality original DRAM chips, it supports ECC function to detect and correct data errors, and a built-in temperature-monitoring thermal sensor to prevent overheating and improve the memory module’s reliability.

Module Type
ECC SO-DIMM
Memory Technology
DDR4
Frequency
2133/2400/2666/2933/3200
Density
4GB - 32GB
Voltage
1.2v
PIN Count
260-Pin
Width
72-Bit
PCB Height
1.18"
Operational Temperature
0°C +85°C

Apacer ECC UDIMM DDR5

Apacer’s industrial DDR5 ECC UDIMM employ original high-quality DRAM Ics. They incorporate an on-die ECC mechanism that greatly strengthens the reliability, availability and serviceability of the DRAM IC. On the other hand, Apacer's DDR5 modules incorporate a power management IC (PMIC) on the module itself to control the system’s load while also improving signal integrity and compatibility. Moreover, DDR5 modules require just 1.1V, which will translate into significant power savings and reduced heat generation.

ECC UDIMM (ECC Unbuffered DIMM) is a JEDEC-compliant module designed specifically for servers and workstations that require highly stable operation. Manufactured with the highest quality original DRAM chips, it supports ECC function to detect and correct data errors, and a built-in temperature-monitoring thermal sensor to prevent overheating and improve the memory module’s reliability.

Module Type
ECC UDIMM DDR5
Memory Technology
DDR5
Frequency
4800/5600
Density
16GB - 32GB
Voltage
1.1v
PIN Count
288-Pin
Width
72 Bit
PCB Height
1.23"
Operational Temperature
0°C +85°C

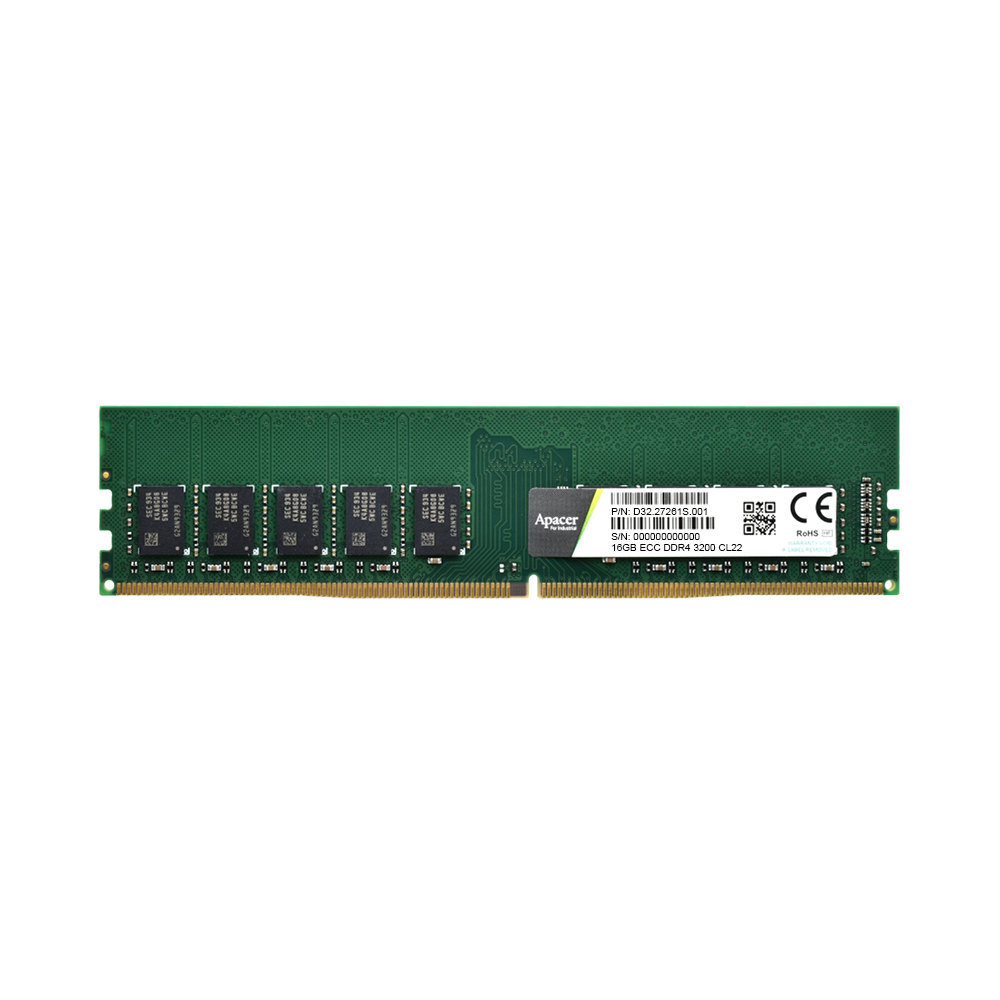

Apacer ECC UDIMM DDR4

ECC UDIMM (ECC Unbuffered DIMM) is a JEDEC-compliant module designed specifically for servers and workstations that require highly stable operation. Manufactured with the highest quality original DRAM chips, it supports ECC function to detect and correct data errors, and a built-in temperature-monitoring thermal sensor to prevent overheating and improve the memory module’s reliability.

Module Type
ECC UDIMM
Memory Technology
DDR4
Frequency
2133/2400/2666/2933/3200
Density
4GB - 32GB
Voltage
1.2v
PIN Count
288-Pin
Width
72 Bit
PCB Height
1.23"
Operational Temperature
0°C +85°C
