Flash Profiler

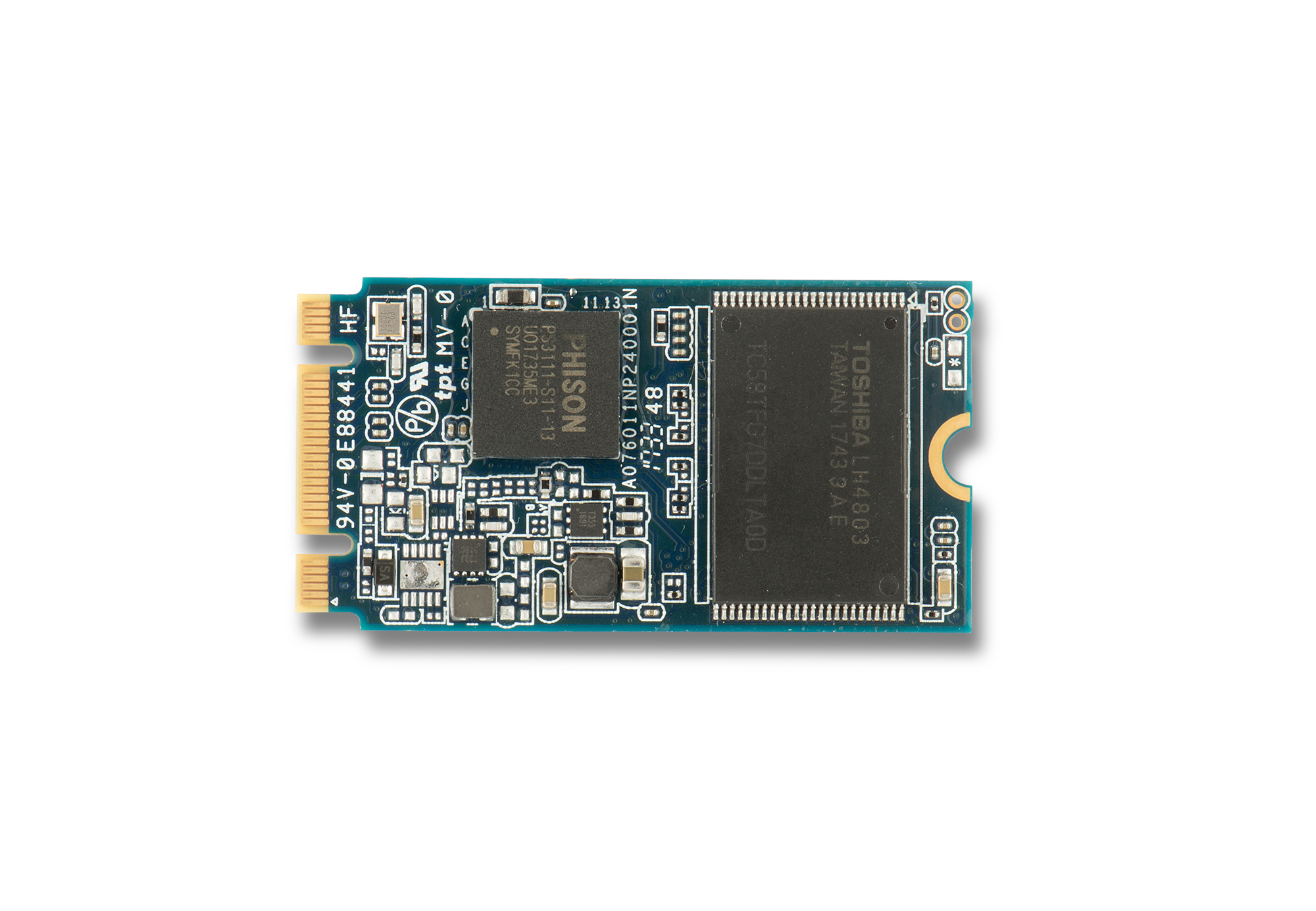

acon M.2 2242 SATA III SSD M/MX410

acon Industrial M.2 2242 SSD is a new SSD module designed for embedded systems applied for industrial platforms. acon industrial 2242 SSD offers a universal temperature range for operation, 0°C - 70°C and -40°C - 85°C and a capacity up to 512GB.

Model No.
M/MX410
Interface
SATA III 6.0 Gb/s
Capacity
4GB - 512GB
Flash Type
MLC
Endurance
3.000 P/E Cycles
Standard Temperature
0°C bis +70°C
Extended Temperature
-40°C bis +85°C
Performance
SR: 560MB/s | SW:465MB/s
DRAM
No

Model Nr.
MX410 Seal M.2
Form Factor
M.2 2242 SATA III
Kapazität
4GB - 512GB
Flash Typ
MLC
Endurance
3.000 P/E Cycles
Standard Temperatur
-
Erweiterte Temperatur
-40C bis +85C
Lesegeschwindigkeit
560MB/s
Schreibgeschwindigkeit
465MB/s
Coating
elektronisches Gießharz

Cactus M.2 2242 SATA III SSD Series 240

The Cactus Technologies 240S Series Commercial Grade M.2 (also known as NGFF – Next Generation Form Factor), 2242 (22mm x 42mm) form factor is available in capacities up to 256 Gbytes, is a solid-state flash memory product that adheres to the SATA-IO group’s specifications. Based on MLC NAND, it is intended for OEM applications needing a cost effective part with high performance SATA interface.
The 240S Series M.2 2242 comes with full BOM Control and is built with Stringent Quality Processes. Cactus Technologies incorporates World Class ECC, Wear Leveling and Defect Management into the 240S Series M.2, making it the most reliable MLC based M.2 on the market. Custom Labeling, Custom ID and Preloaded Content are available based on customer requirement

Model No.

240S-SM5
Interface
SATA III 6.0 Gb/s
Capacity
64GB - 256GB
Flash Typ
MLC
Endurance
3.000 P/E Cycles
Standard Temperature
0°C - +70°C
Extended Temperature
-40°C - +85°C
Performance

SR: 540MB/s | SW: 450MB/s
DRAM

No

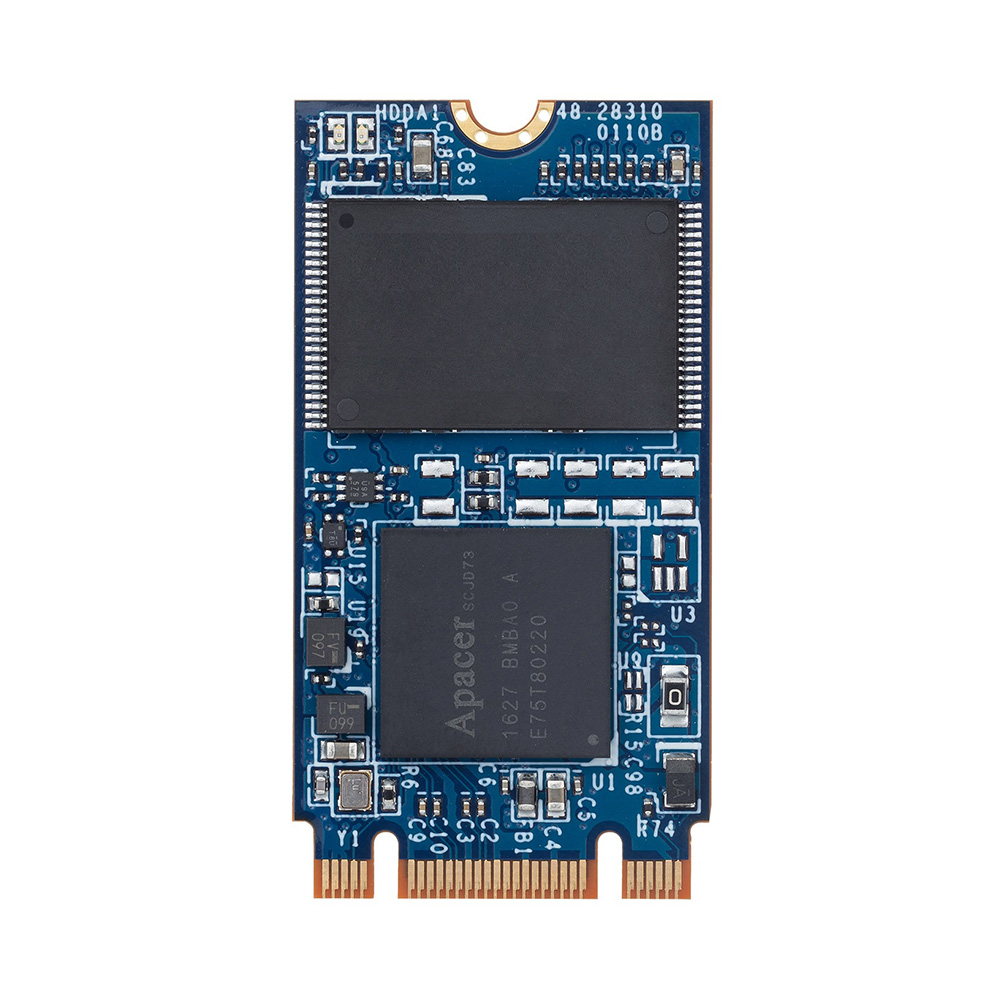

Apacer M.2 2242 SATA III SSD SM230-M242

Apacer’s SM230-M242 (M.2 2242) is the next generation modularized Solid State Drive (SSD) with the shape of all new M.2 form factor, with the aim of becoming more suitable for mobile and compact computers with standard width at only 22.00 mm. SM230-M242 appears in M.2 2242 mechanical dimensions and is believed to be the leading add-in storage solution for future host computing systems.
Regarding reliability, SM230-M242 is built with a powerful SATA controller that supports on-the-module ECC as well as efficient wear leveling scheme. Operating under SATA 6.0 Gbps interface, SM230-M242 is provided with Apacer latest S.M.A.R.T. that is primarily oriented for the latest SATA interface SSD, for drive lifetime monitoring and analyzing. Furthermore, with Advanced Encryption Standard (AES) and Trusted Computing Group (TCG) Opal support, SM230-M242 ensures data security and provides users with a peace of mind knowing their data is safeguarded against unauthorized use at all times.

Model No.
SM230-M242
Interface
SATA III 6.0 Gb/s
Capacity
8GB - 256GB
Flash Type
MLC
Endurance
3.000 P/E Cycles
Standard Temperature
0°C bis +70°C
Extended Temperature
-40°C bis +85°C
Performance
SR: 555MB/s | SW: 470MB/s
DRAM
No

Model Nr.
M.2 2242 3ME3
Form Factor
M.2 SATA III 6.0 Gb/s
Kapazität
8GB~128GB
Flash Typ
MLC
MTBF (Std.)
>3 million hours
Standard Temperatur
0C bis +70C
Erweiterte Temperatur
-40C bis +85C
Lesegeschwindigkeit
200 MB/s
Schreibgeschwindigkeit
80 MB/s

Model Nr.
M.2 2242 3ME4
Form Factor
M.2 SATA III 6.0 Gb/s
Kapazität
8GB~256GB
Flash Typ
MLC
MTBF (Std.)
>3 million hours
Standard Temperatur
0C bis +70C
Erweiterte Temperatur
-40C bis +85C
Lesegeschwindigkeit
530 MB/s
Schreibgeschwindigkeit
210 MB/s

Model Nr.
Z400s
Form Factor
M.2 2242 SATA III
Kapazität
32GB - 128GB
Flash Typ
MLC
Standard Temperatur
0C bis +70C
Erweiterte Temperatur
-
Lesegeschwindigkeit
546MB/s

Schreibgeschwindigkeit
342MB/s

StorFly® M.2 SATA delivers an optimal solid-state storage solution for embedded and industrial systems that require high performance in a small form factor.
M.2 requires less power and generates less heat, which improves the devices’ reliability in systems where space is limited and airflow minimal, if not absent entirely. This provides system designers with the capability to scale their capacity by allowing integration of multiple SSDs all within a limited power budget or system footprint.

Model Nr.
CE
Interface
M.2 2242 SATA III
Kapazität
30GB-960GB
Flash Typ
MLC
MTBF (Std.)
100 TSD
Standard Temperatur
0C bis +70C
Erweiterte Temperatur
-
Lesegeschwindigkeit
520MB/s
Schreibgeschwindigkeit
300MB/s
