Flash Profiler
microSD



acon microSD Card T/TX32

The MaxIOPs Micro Secure Digital (microSD) card is fully compliant with the standards released by the SD Card Association. The Command List supports [Part 1 Physical Layer Specification Ver 6.1 Final] definitions. Card capacities of the nonsecure area and secure area support [Part 3 Security Specification Ver3.0 Final] Specifications.
The microSD 6.1 card comes with an 8-pin interface, designed to operate at a maximum frequency of 208MHz. It can alternate communication protocol between the SD mode and SPI mode. It performs data error detection and correction with very low power consumption. Micro Secure Digital 6.1 cards are one of the most popular cards today due to its high performance, good reliability and wide compatibility.

Model No.
T/TX32
Interface
SD 5.1
Capacity
64GB - 512GB
Flash Type
3D TLC
Endurance
3.000 P/E Cycles
Standard Temperature
-25°C +85°C
Extended Temperature
-40°C +85°C
Performance
SR: 100MB/s | SW: 80MB/s
DRAM
No

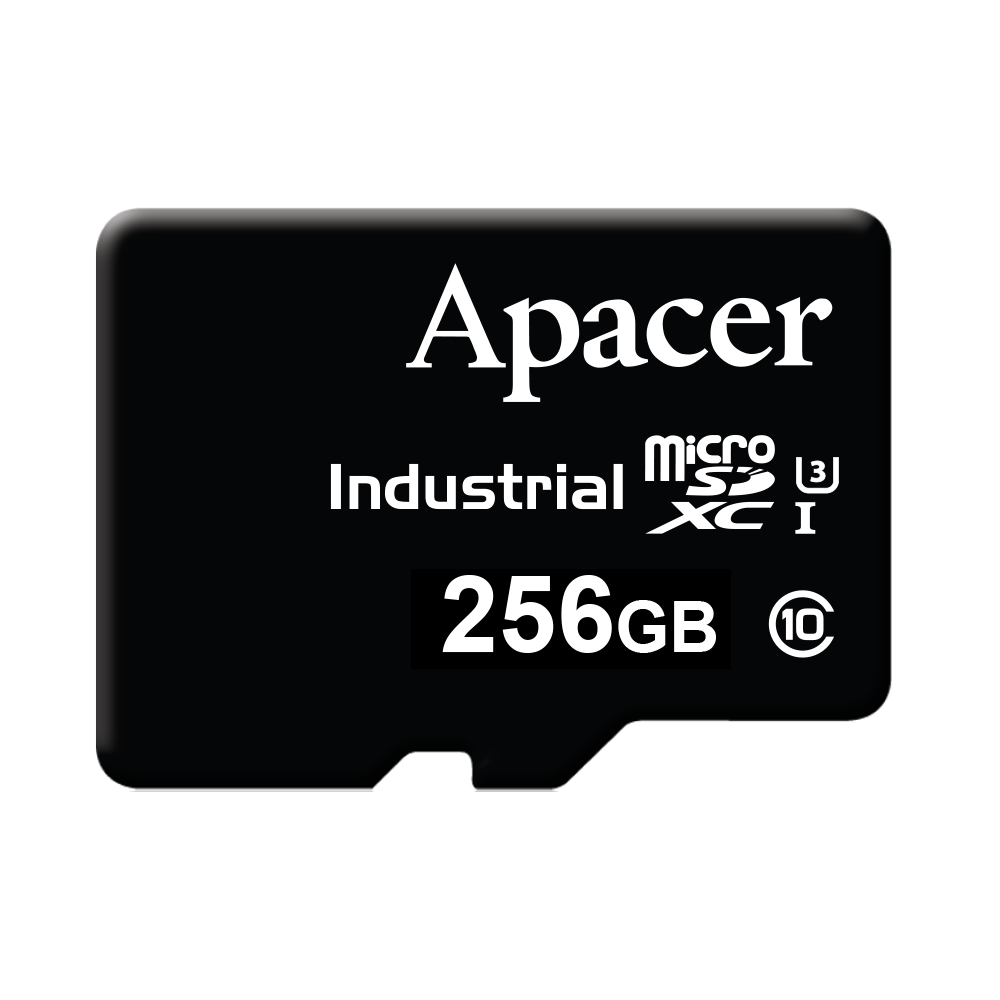

Apacer microSD Card CV120-MSD

Apacer microSD CV120-MSD is compatible with the microSD card version 6.1. The command list supports [Physical Layer Specification Ver6.10 Final] definitions. Card Capacity of Non-secure Area, Secure Area Supports [Part 3 Security Specification Ver4.0 Final] Specifications.

The microSD 6.1 card comes with 8-pin interface. It can alternate communication protocols between the SD mode and SPI mode. It performs data error detection and correction with very low power consumption and supports capacity up to 256GB with exFAT SDXC.

Apacer microSD CV120-MSD Secure Digital 6.1 with high performance, good reliability and wide compatibility is nowadays one of the most popular cards with customized firmware techniques in semi-industrial/medical markets already.

Model No.
CV120-MSD
Interface
SD 4.0
Capacity
64GB - 256GB
Flash Type
3D TLC
Endurance
3.000 P/E Cycles
Standard Temperature
-25°C +85°C
Extended Temperature
-40°C +85°C
Performance
SR: 90MB/s | SW: 85MB/s
DRAM
No
