Flash Profiler
2,5" SSD

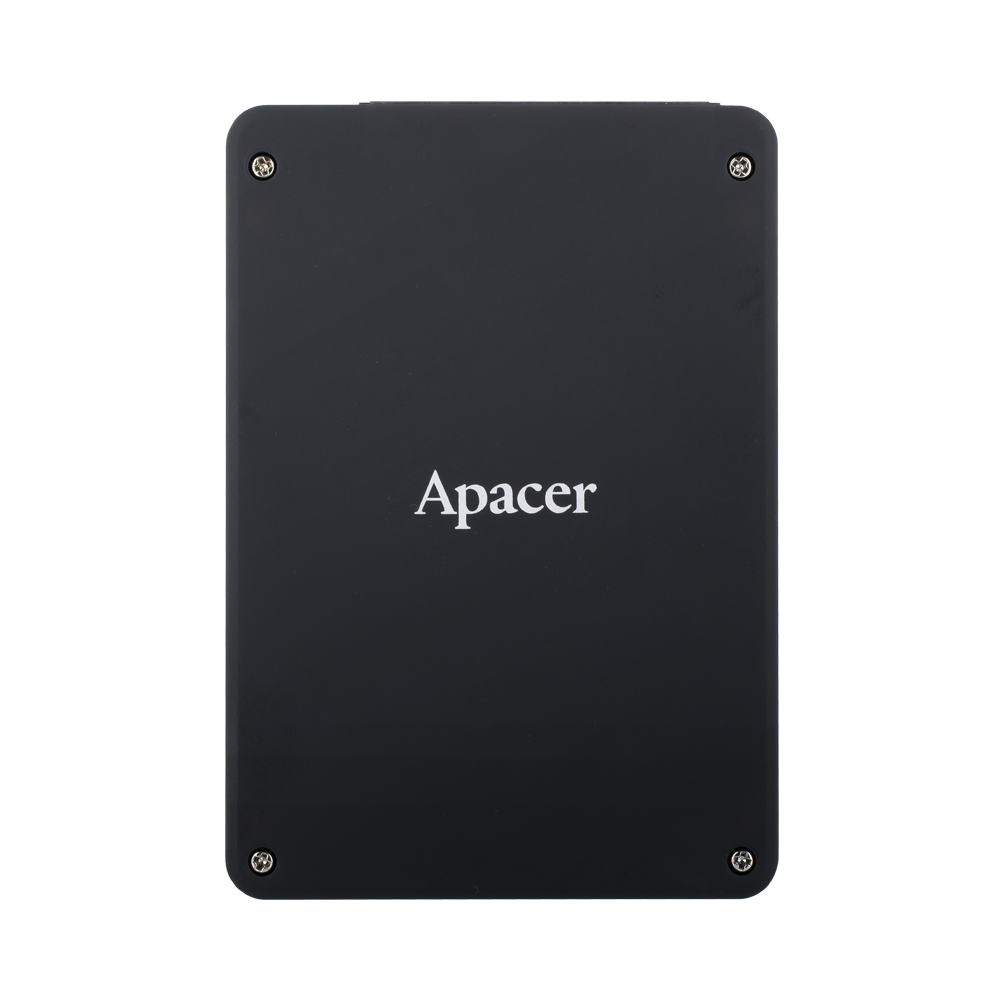

Apacer 2,5" SATA III SSD SV240-25

Apacer’s SV240-25 is a well-balanced solid-state disk (SSD) drive with standard form factor and great performance. Designed in SATA 6 Gb/s interface, the SSD is able to deliver exceptional read/write speed, making it the ideal companion for heavy-loading industrial or server operations.

SV240-25 utilizes 3D NAND for higher capacity up to 1920GB and provides more power efficiency than 2D NAND. Regarding reliability, SV240-25 is implemented with LDPC (Low Density Parity Check) ECC engine to extend SSD endurance and increase data reliability while reading raw data inside a flash chip. In addition, the drive comes with various implementations including powerful hardware ECC engine, power saving modes, wear leveling, flash block management, S.M.A.R.T., TRIM, and DataDefender.

Model No.
SV240-25
Interface
SATA III 6.0 Gb/s
Capacity
120GB - 1920GB
Flash Type
3D TLC
Endurance
3.000 P/E Cycles
Standard Temperature
0°C - +70°C
Extended Temperature
-40°C - +85°C
Performance
SR: 560MB/s | SW: 505MB/s
DRAM
Yes

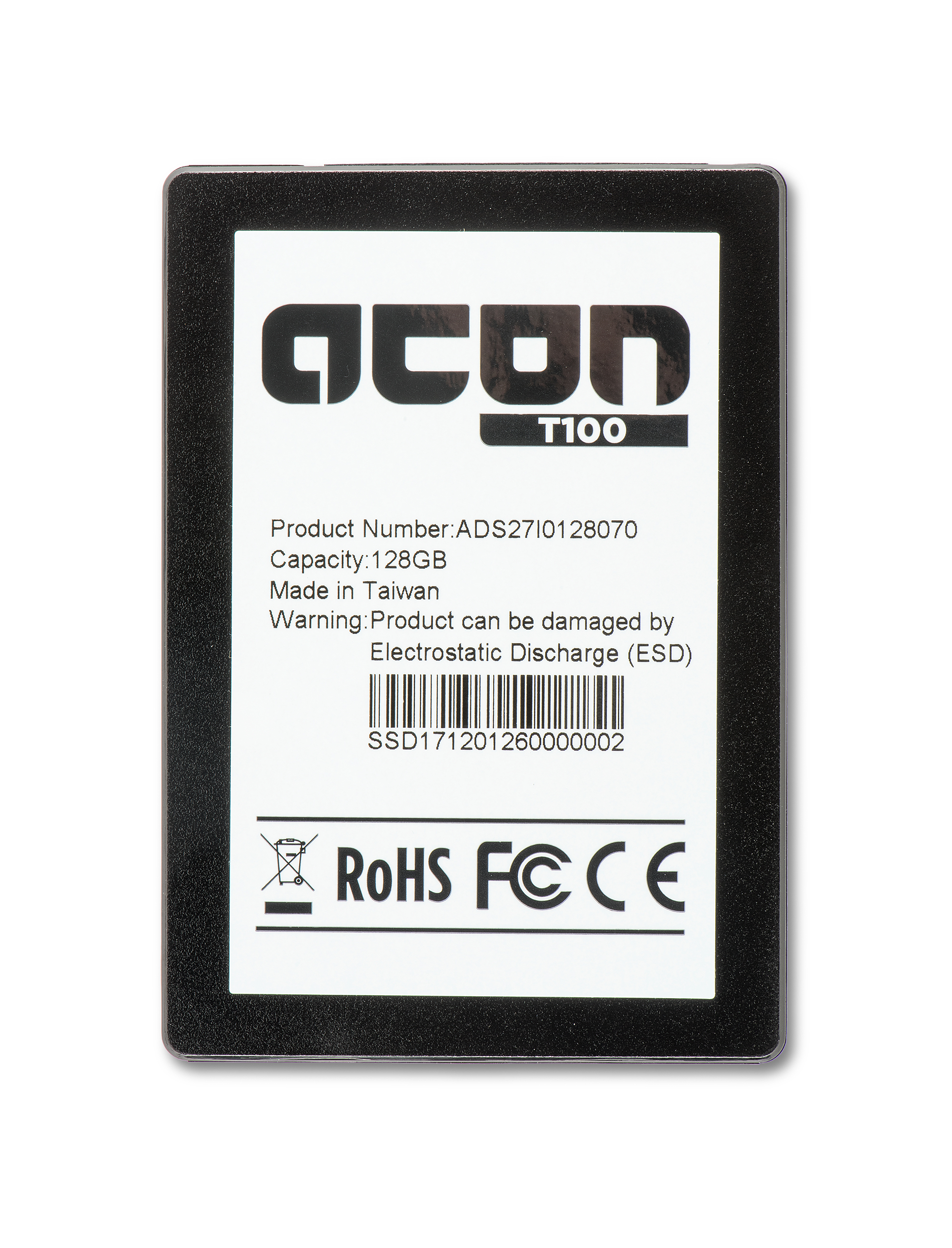

acon 2,5" SATA III SSD T/TX 420

acon’s 2.5” SATA Solid State Disk (SSD) delivers all the advantages of flash disk technology with the Serial ATA I/II/III interface, including being fully compliant with standard 2.5-inch form factor, providing low power consumption compared to traditional hard drive and hot-swapping when removing/replacing/upgrading flash disks. The device is designed based on the standard 7-pin interface for data segment and 15-pin for power segment, as well as operating at a maximum operating frequency of 400MHz with 25MHz external crystal. Its capacity could provide a wide range up to 8TB. Moreover, it can reach up to 550MB/s read as well as 530MB/s write high performance based on TSB BiCS3 3D TLC flash.

Model No.
T/TX420
Interface
SATA III 6.0 Gb/s
Capacity
240GB - 8TB
Flash Type
3D TLC
Endurance
3.000 P/E Cycles
Standard Temperature
0°C +70°C
Extended Temperature
-40°C +85°C
Performance
SR: 560MB/s | SW:530MB/s
DRAM
Yes

Apacer 2,5" SATA III SSD SV250-25

Apacer’s SV250-25 is a well-balanced solid-state disk (SSD) drive with standard form factor and great performance. Designed in SATA 6.0 Gbps interface, the SSD is able to deliver exceptional read/write speed, making it the ideal companion for heavy-loading industrial or server operations.

SV250-25 utilizes 3D NAND and provides more power efficiency than 2D NAND. Regarding reliability, SV250-25 is implemented with LDPC (Low Density Parity Check) ECC engine to extend SSD endurance and increase data reliability while reading raw data inside a flash chip. In addition, the drive comes with various implementations including powerful hardware ECC engine, power saving modes, wear leveling, flash block management, S.M.A.R.T., TRIM, and DataDefender™.

Model No.
SV250-25
Interface
SATA III 6.0 Gb/s
Capacity
30GB - 960GB
Flash Type
3D TLC
Endurance
3.000 P/E Cycles
Standard Temperature
0°C +70°C
Extended Temperature
-40°C +85°C
Performance
SR: 560MB/s | SW: 520MB/s
DRAM
No

acon 2,5" SATA III SSD T/TX 410

acon 2.5” SATA Solid State Disk (SSD) delivers all the advantages of flash disk technology with the Serial ATA I/II/III interface, including being fully compliant with standard 2.5-inch form factor, providing low power consumption compared to traditional hard drive and hot-swapping when removing/replacing/upgrading flash disks. The device is designed based on the standard 7-pin interface for data segment and 15-pin for power segment, as well as operating at a maximum operating frequency of 200MHz with 30MHz external crystal. Its capacity could provide a wide range up to 1TB. Moreover, it can reach up to 550MB/s read as well as 500MB/s write high performance based on 16CE and Toggle 2.0 TLC flash (with 32MB SDR enabled and measured by CrystalDiskMark v5.0).

Model No.
T/TX410
Interface
SATA III 6.0Gb/s
Capacity
32GB - 1TB
Flash Type
3D TLC
Endurance
3.000 P/E Cycles
Standard Temperature
0°C +70°C
Extended Temperature
-40°C +85°C
Performance
SR: 550MB/s | SW: 500MB/s
DRAM
No
