Flash Profiler
SATA DoM

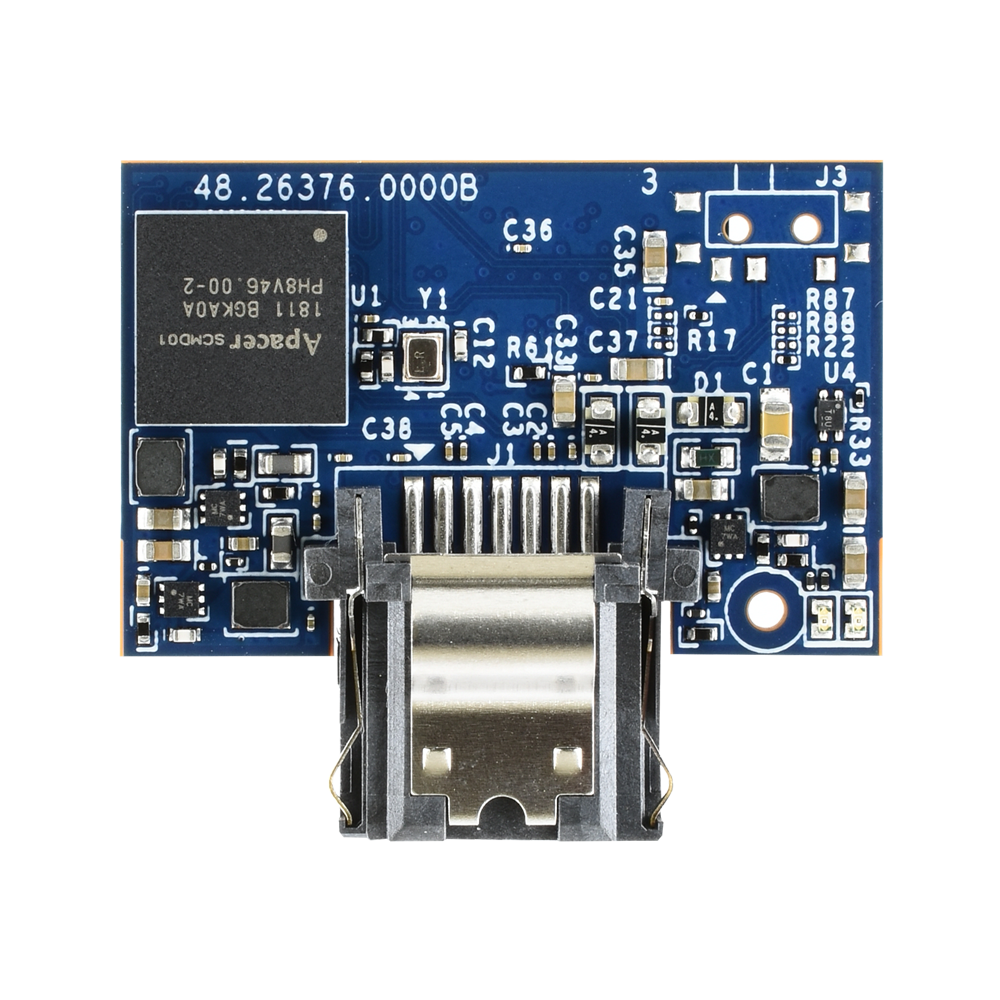

Apacer SATA DoM SATA III SV250-7LP2

Apacer SV250-7LP2 (SATA Disk Module 7Pin/180 Degree Low Profile 2) is a super-mini industrial SSD module, utilizing 3D NAND for higher capacity up to 240 GB and provides more power efficiency than 2D NAND. Designed in SATA 6.0 Gb/s interface, SV250-7LP2 can deliver outstanding performance up to 560 MB/s in reading and 510 MB/s in writing, highly suitable to serve as operating system boot drive or storage media of important data.

SV250-7LP2 features Apacer Multi-PowerPath technology that provides three methods to supply power to the host either via a conventional cable or cable-less design via pin7 or state-of-art 7+2 pin connector, which in turn offers developers maximum flexibility when it comes to board design.

Moreover, the device adopts the latest page mapping file translation layer and thermal throttling function, making it a powerful yet compact solution for space-limited design. Regarding reliability, SV250-7LP2 is implemented with LDPC (Low Density Parity Check) ECC engine to extend SSD endurance and increase data reliability while reading raw data inside a flash chip.

Model No.
SV250-7LP2
Interface
SATA III 6.0 Gb/s
Capacity
30GB - 120GB
Flash Type
3D TLC
Endurance
3.000 P/E Cycles
Standard Temperature
0°C +70°C
Extended Temperature
-40°C +85°C
Performance
SR: 560MB/s | SW: 510MB/s
DRAM
No

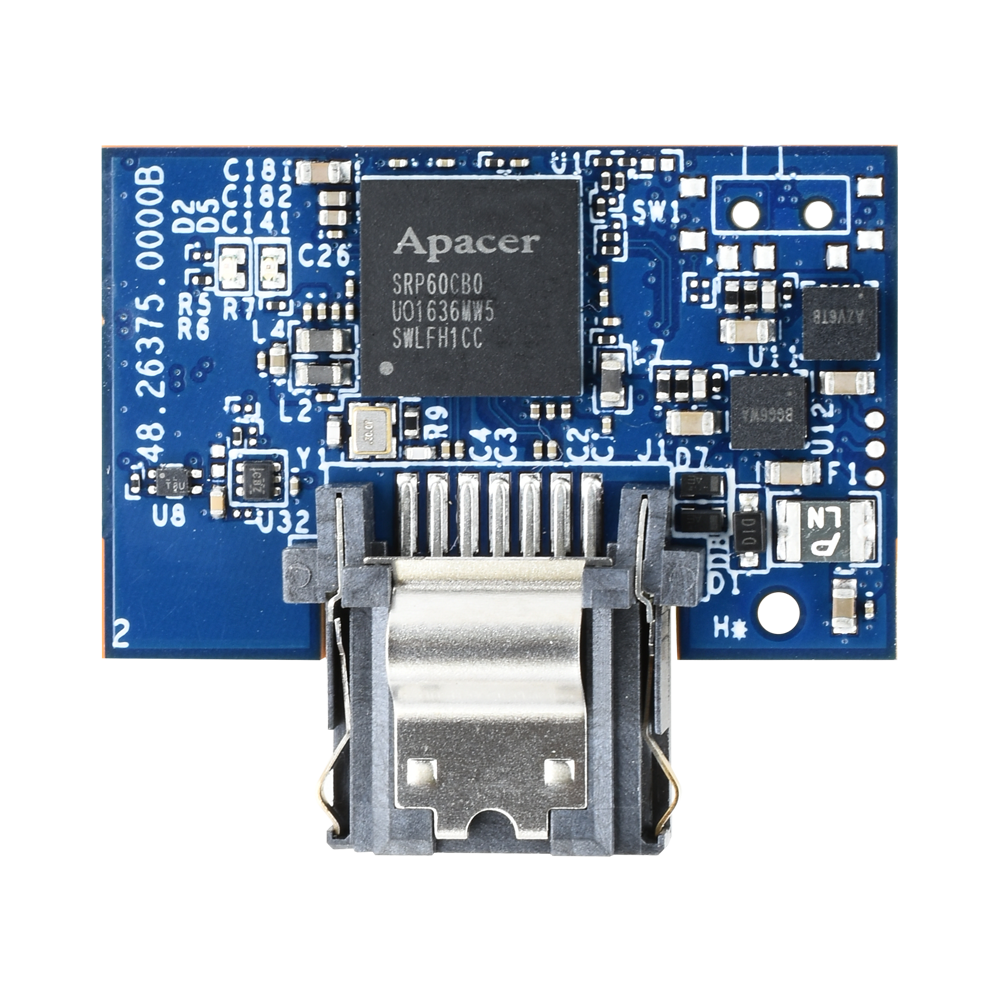

Apacer SATA DoM SATA III ST170-7LP2

Apacer ST170-7LP2 (SATA Disk Module 7Pin/180 Degree Low Profile 2) is a super-mini industrial SSD module, utilizing 3D NAND for higher capacity up to 120 GB and provides more power efficiency than 2D NAND.

Designed in SATA 6.0 Gb/s interface, ST170-7LP2 can deliver outstanding performance up to 335 MB/s in reading and 235 MB/s in writing, highly suitable to serve as operating system boot drive or storage media of important data.For data efficiency, the internal controlling unit of the product is engineered with a DRAM as a write cache for enhanced random performance and endurance.

Model No.
ST170-7LP2
Interface
SATA III 6.0 Gb/s
Capacity
30GB - 120GB
Flash Type
3D TLC
Endurance
3.000 P/E Cycles
Standard Temperature
0°C +70°C
Extended Temperature
--
Performance
SR: 335MB/s | SW: 235MB/s
DRAM
No
