Apacer Registered DIMM DDR5

Apacer’s industrial DDR5 RDIMM employ original high-quality DDR5 DRAM ICs, delivering improvements in performance, capacity, power consumption and reliability. Apacer’s DDR5 RDIMM is equipped with a 12V power management IC to control the power load of the system more efficiently. This helps to improve signal integrity and reduce noise in circuits. It also employs two high-precision temperature sensors which precisely track all changes in temperature, reducing the risk of overheating and improving performance. And it is protected by both on-die ECC and side-band ECC, providing end-to-end protection for data transmission and meeting the RAS (Reliability, Availability and Serviceability) requirements for data centers that operate 24/7.

RDIMM (ECC Registered DIMM) is a JEDEC-compliant design applicable for enterprise servers and cloud data centers. With a register between the memory module and the system’s memory controller, the RDIMM improves overall system stability and increases memory module quantity. Furthermore, it supports ECC function to detect and correct data errors, and a built-in temperature-monitoring thermal sensor to prevent overheating and improve the memory module’s reliability.

Module Type
RDIMM DDR5
Memory Technology
DDR5
Frequency
4800/5600
Density
16GB - 128GB
Voltage
1.1v
PIN Count
288PIN
Width
72 Bit
PCB Height
1.23"
Operational Temperature
0°C +85°C

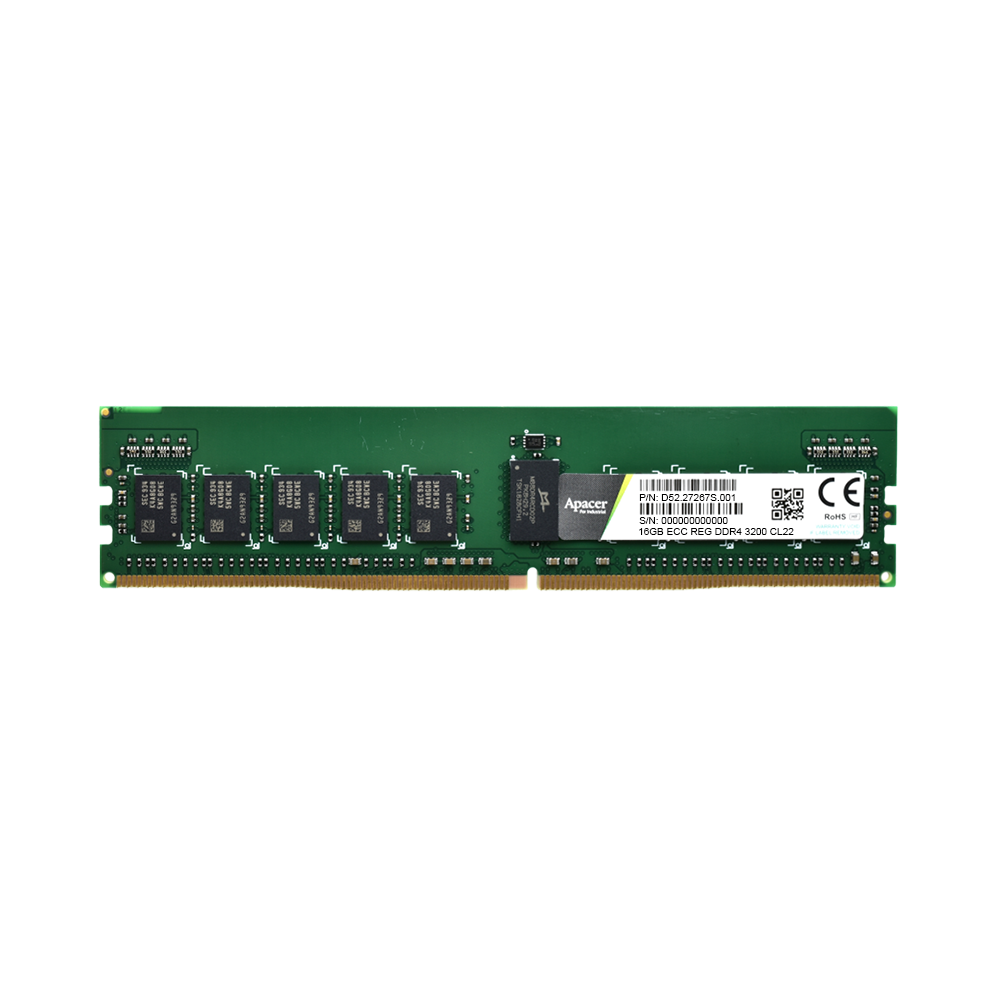

Apacer Registered DIMM DDR4

RDIMM (ECC Registered DIMM) is a JEDEC-compliant design applicable for enterprise servers and cloud data centers. With a register between the memory module and the system’s memory controller, the RDIMM improves overall system stability and increases memory module quantity. Furthermore, it supports ECC function to detect and correct data errors, and a built-in temperature-monitoring thermal sensor to prevent overheating and improve the memory module’s reliability.

Module Type
RDIMM
Memory Technology
DDR4
Frequency
2133/2400/2666/2933/3200
Density
4GB - 64GB
Voltage
1.2v
PIN Count
280 PIN
Width
72 Bit
PCB Height
1.23"
Operational Temperature
0°C +85°C
