Flash Profiler
M.2 2280




acon M.2 2280 SATA III SSD L/TX430

acon M.2 2280 delivers all the advantages of flash disk technology with the Serial ATA I/II/III Interface Format and is fully compliant with the standard Next Generation Form Factor (NGFF) called M.2 Card, which is generated by Intel. The M.2 2280 is designed to operate at a maximum operating frequency of 200MHz with 30MHz external crystal. Its capacity could provide a wide range up to 512GB. Moreover, it can reach up to 550MB/s read as well as 495MB/s write high performance based on Toggle 2.0 TLC flash (with 32MB SDR enabled and measured by CrystalDiskMark v5.0). The power consumption of the M.2 2280 is much lower than traditional hard drives, making it the best embedded solution for new platforms.

Model No.
T/TX410
Interface
SATA III 6.0 Gb/s
Capacity
16GB - 512GB
Flash Type
3D pSLC
Endurance
30.000 P/E Cycles
Standard Temperature
0°C +70°C
Extended Temperature
-40°C +85°C
Performance
SR: 560MB/s | SW: 495MB/s
DRAM
No

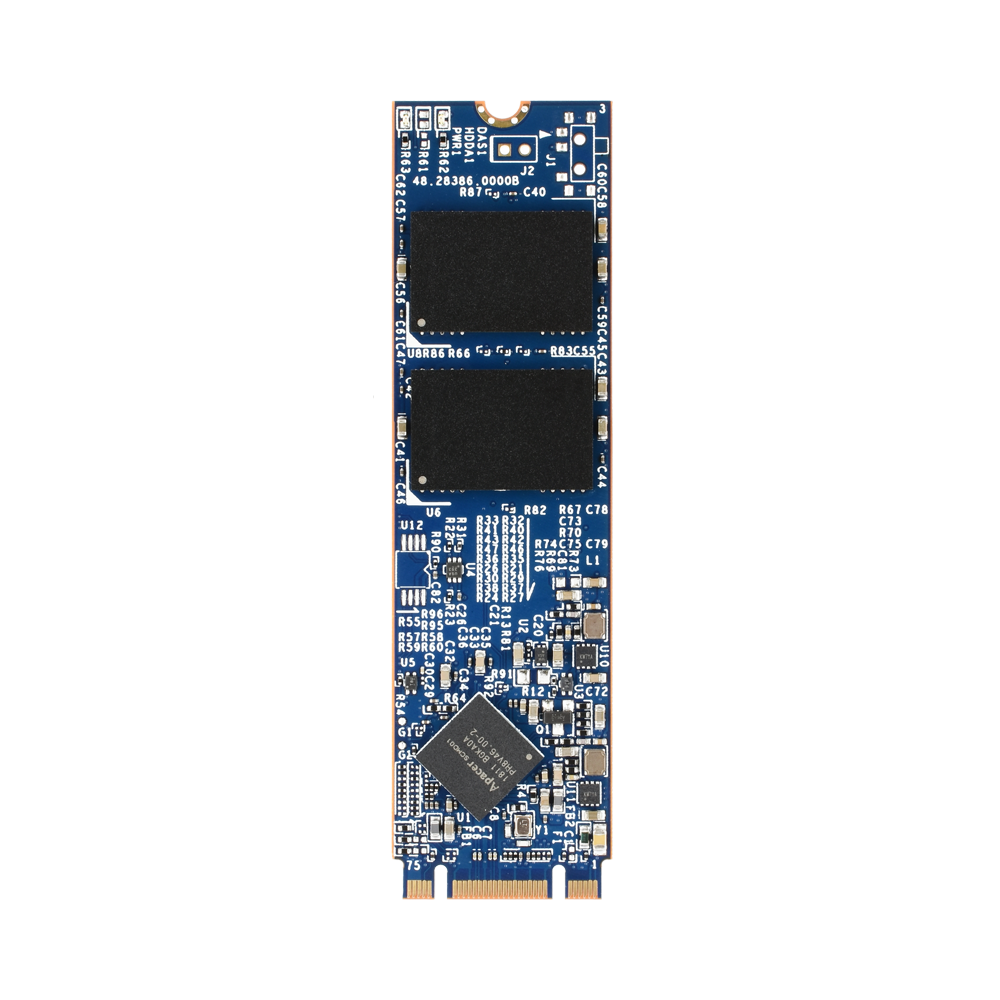

Apacer M.2 2280 SATA III SSD SH250-M280

Apacer’s SH250-M280 is a well-balanced solid-state disk (SSD) drive with standard form factor and great performance. Designed in SATA 6.0 Gbps interface, the SSD is able to deliver exceptional read/write speed, making it the ideal companion for heavy-loading industrial or server operations.
SH250-M280 utilizes 3D NAND for higher capacity up to 320GB and provides more power efficiency than 2D NAND. Appearing in M.2 2280 mechanical dimensions, SH250-M280 is believed to be the leading add-in storage solution for future host computing systems.
With Apacer’s SLC-liteX technology, SH250-M280 performs with higher number of P/E cycles up to 30,000 times. Regarding reliability, SH250-M280 is implemented with LDPC (Low Density Parity Check) ECC engine to extend SSD endurance and increase data reliability while reading raw data inside a flash chip. In addition, the drive comes with various implementations including powerful hardware ECC engine, power saving modes, Wear Leveling, flash block management, S.M.A.R.T., TRIM and DataDefender™.

Model No.
SH250-M280
Interface
SATA III 6.0 Gb/s
Capacity
10GB - 320GB
Flash Type
3D pSLC
Endurance
30.000 P/E Cycles
Standard Temperature
0°C +70°C
Extended Temperature
-40°C +85°C
Performance
SR: 560MB/s | SW: 520MB/s
DRAM
No
