Flash Profiler
USB DoM

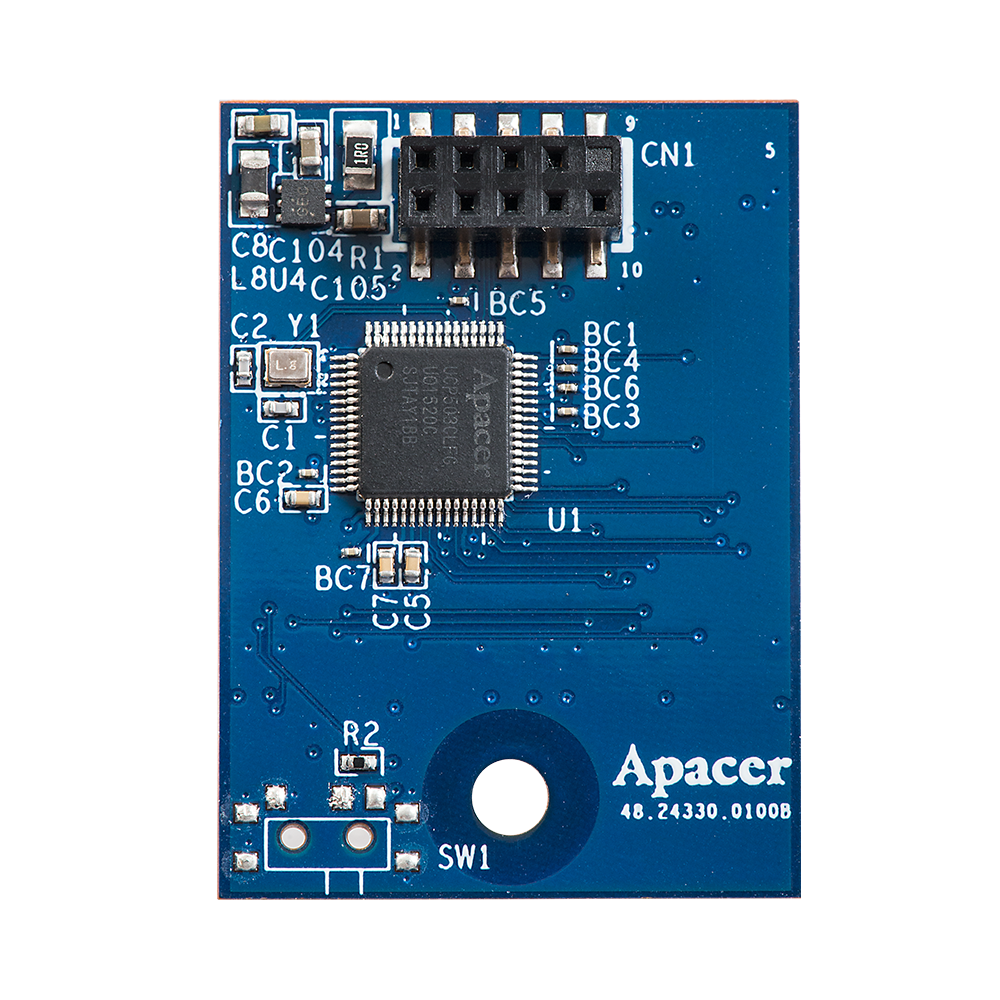

Apacer USB DoM UDM2A

Apacer’s UDM2A LP 90D (Type E) is a high performance, highly reliable, high endurance USB2.0 flash disk module in a small form factor designed for embedded applications or the system as a boot drive . The 10-pin USB connector on the Type E with pitch size 2.00 mm could perfectly fit in low profile system .The device built with premium SLC delivers the data integrity and highest endurance in a wide rage of platform.

Model No.
UDM2A
Interface
USB 2.0
Capacity
256MB - 32GB
Flash Typ
SLC
Endurance
60.000 P/E Cycles
Standard Temperature
0°C +70°C
Extended Temperature
-40°C +85°C
Performance
SR: 44MB/s | SW: 41MB/s
DRAM
No

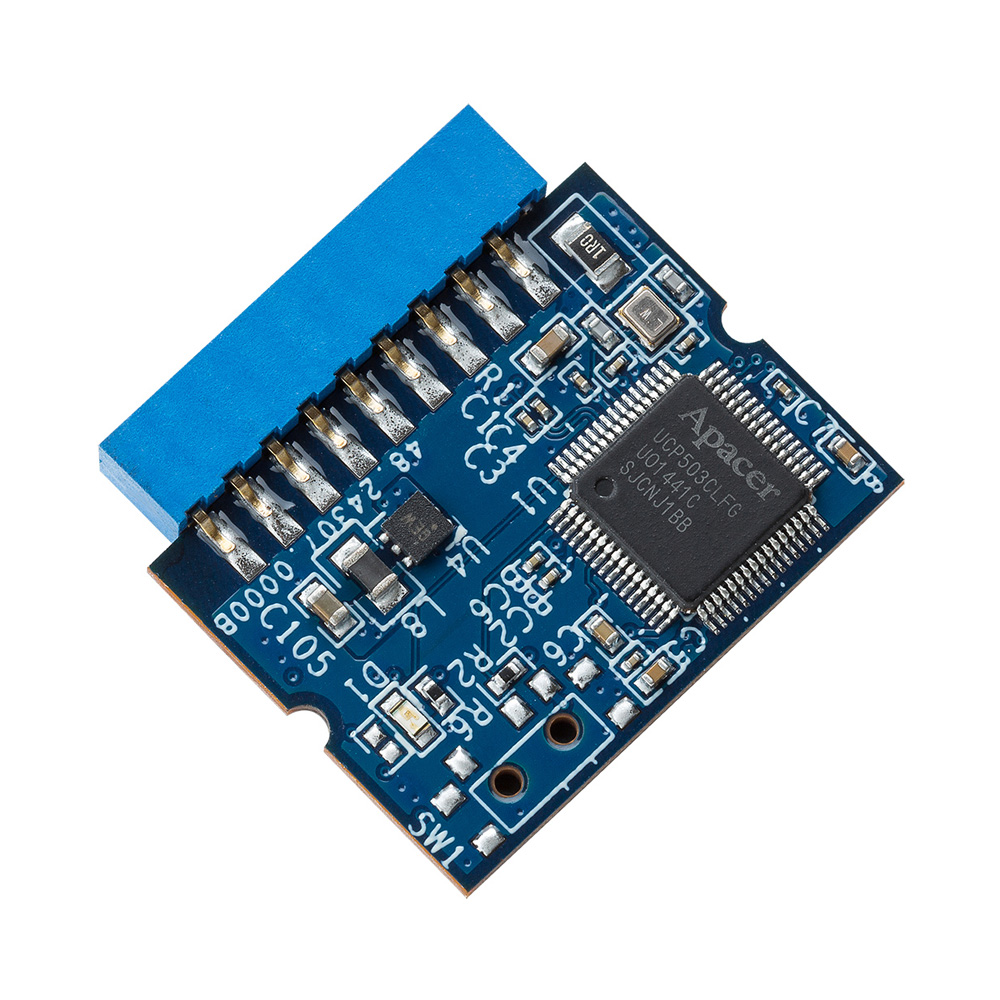

Apacer USB DoM UDM-1U

UDM 1U is small form factor that electrically complies with High-speed USB 3.0 interface. Tailored for the 1U server, the new series boasts upgraded speeds and a doubling of capacity. The minimum height is only 22.4mm, enhancing the air ventilation inside the 1U chassis.
The actual available memory on the device is less than what is listed on the package. This is due to small discrepancies in file formats and algorithms used by various operating systems. In addition, a portion of memory space is reserved for system files and data sectors for better performance.

Model No.
UDM-1U
Interface
USB 3.0
Capacity
128MB - 16GB
Flash Type
SLC
Endurance
60.000 P/E Cycles
Standard Temperature
0°C +70°C
Extended Temperature
-40°C +85°C
Performance
SR: 41MB/s | SW: 36MB/s
DRAM
No

Cactus USB DoM Series 100

The Cactus Technologies 100 Series Industrial Grade USB Disk On Module, available in capacities up to 8 Gbytes, is a rugged, highly reliable, high endurance, solid-state flash memory product with an industry standard USB 2.0 interface. It is intended for OEM applications needing a high endurance part with high performance or requiring the optional full extended temperature range of -45C to +90C.
The 100 Series Industrial Grade USB Disk On Module is SLC NAND based and comes with full BOM Control, Long Life Cycles and is built with Stringent Quality Processes. Cactus Technologies incorporates Industrial Grade ECC, Wear Leveling, Write Abort Protection Circuitry and Defect Management into the product, making it the most reliable USB Disk On Module available.

Model No.
KU8GR-100M1
Interface
USB 2.0
Capacity
128MB - 8GB
Flash Type
SLC
Endurance
60.000 P/E Cycles
Standard Temperature
0°C +70°C
Extended Temperature
-45°C +90°C
Performance
SR: 30MB/s | SW: 25MB/s
DRAM
No
