Flash Profiler
CFAST




acon CFAST Card SATA III L/LX41

acon’s L-LX41 CFastTM delivers all the advantages of Flash Disk technology with the Serial ATA III interface and is fully compliant with the standard CFastTMform factor. Given the features of the low power consumption, small form factor, and high shock-resistance, CFastTM is an attractive solution to replace the conventional [PATA-interfaced] CompactFlash card in industrial applications or markets where performance is a major concern.
CFastTM, consisting of a SATA-based 7-pin standard interface for data segment and 17-pin for power and controller segment, is designed to operate at a maximum operating frequency of 200MHz with 30MHz external crystal.

Model No.
L/LX41
Interface
SATA III 6.0 Gb/s
Capacity
16GB - 64GB
Flash Type
pSLC
Endurance
20.000 P/E Cycles
Standard Temperature
0°C +70°C
Extended Temperature
-40°C +85°C
Performance
SR: 555MB/s | SW: 465MB/s
DRAM
No

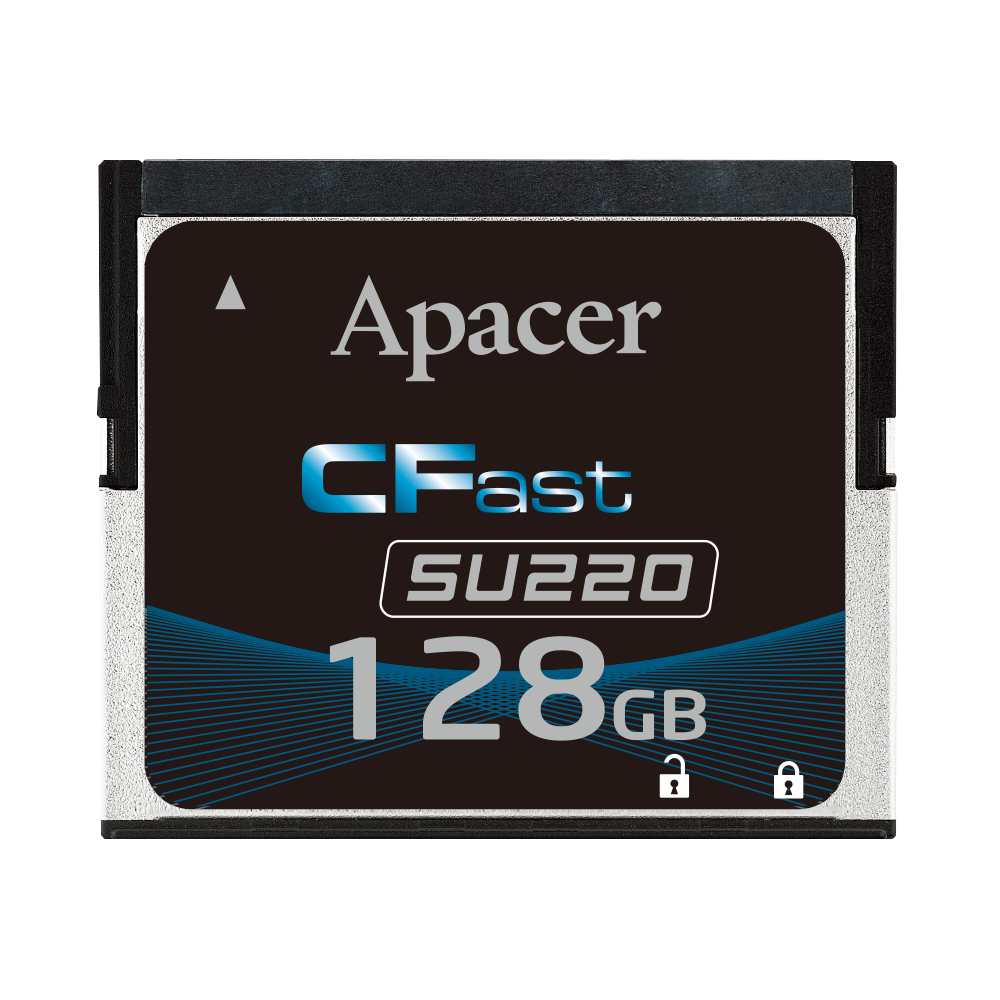

Apacer CFAST Card SATA III SU220

Along with SM220-CFast MLC product family, Apacer offers SU220-CFast with more enhanced endurance than MLC by implementing SLC-Lite technology. SLC-lite is Apacer's proprietary technology that strikes a cost-performance balance between MLC and SLC flash types and it is an ideal alternative solution for mission-critical embedded or industrial applications. This new flash memory card comes with SATA 6.0 Gbps interface for higher performance and consists of SATA-based 7-pin signal segment and 17-pin for power and control purposes. For data efficiency, the internal controlling unit of the SU220-CFast is engineered with DRAM for enhanced random performance which achieves data transfer rates up to 535 MB/s in sequential access and 68,000 IOPS in 4KB random access. In addition, Apacer CFast cards come with S.M.A.R.T. for lifetime monitoring and customization support if write protection is required. Apacer SU220-CFast guarantees reliability of applications in harsh environments by implementing intelligent Flash Management algorithms and Error Correction. Together with its small form factor nature, Apacer SU220-CFast is definitely the ideal solution to replace conventional PATA-based CompactFlash for applications in industrial computing systems, mobile computers and video processing instruments.

Model No.
SU220 CFAST Card
Interface
SATA III 6.0 Gb/s
Capacity
8GB - 128GB
Flash Type
pSLC
Endurance
20.000 P/E Cycles
Standard Temperature
0°C +70°C
Extended Temperature
-40°C +85°C
Performance
SR: 535MB/s | SW: 480MB/s
DRAM
Yes

Cactus CFAST Card SATA III Series 245

Cactus Technologies OEM Grade CFast are highly reliable, cost effective flash storage devices, based on Pseudo-SLC (pSLC) NAND. The pSLC SATA III SSD have >6 times more endurance cycles than Commercial Grade products based on MLC NAND. Pseudo-SLC products should be used in applications which require better endurance, error rates and data retention than the Commercial Grade MLC SATA III SSD.

Model No.
KC64GF-245S
Interface
SATA III 6.0 Gb/s
Capacity
4GB - 64GB
Flash Type
pSLC
Endurance
20.000 P/E Cycles
Standard Temperature
0°C +70°C
Extended Temperature
-40°C +85°C
Performance
SR: 350MB/s | SW: 310MB/s
DRAM
No
