Flash Profiler
Slim SATA




acon Slim SATA SATA III SSD T/TX410

acon’s Half Slim delivers all the advantages of flash disk technology with Serial ATA III interface, including being fully compliant with standard 2.5-inch form factor, providing low power consumption compared to traditional hard drive and hot-swapping when removing/replacing/upgrading flash disks. The device is designed based on the standard 7-pin interface for data segment and 15-pin for power segment, as well as operating at a maximum operating frequency of 200MHz with 30MHz external crystal. Its capacity could provide a wide range up to 256GB. Moreover, it can reach up to 550MB/s read as well as 490MB/s write high performance based on Toshiba’s Toggle 2.0 TLC flash (with 32MB SDR enabled and measured by CrystalDiskMark v5.0).

Model No.
T/TX410
Interface
SATA III 6.0 Gb/s
Capacity
32GB - 128GB
Flash Type
3D TLC
Endurance
3.000 P/E Cycles
Standard Temperature
0°C +70°C
Extended Temperature
-40°C +85°C
Performance
SR: 550MB/s | SW: 490MB/s
DRAM
No

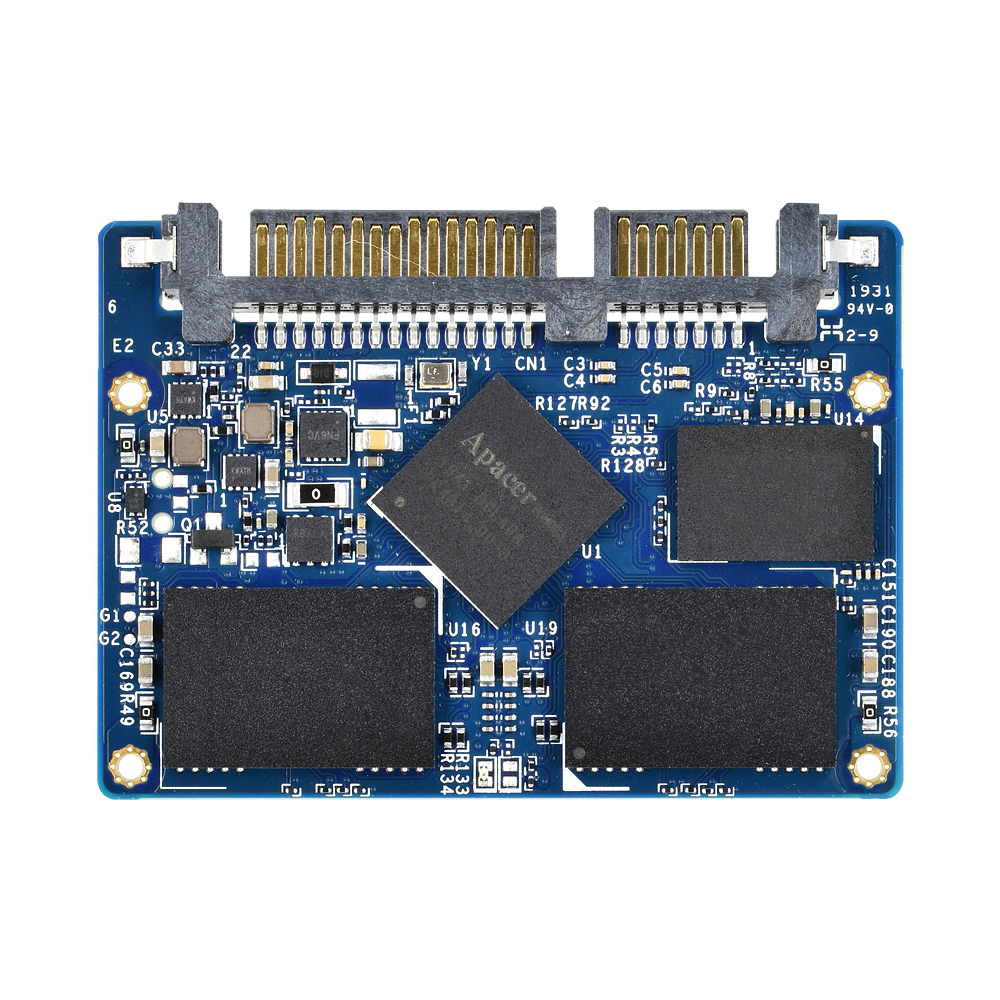

Apacer Slim SATA SATA III SSD SV240-297

Apacer’s SV240-297 (JEDEC MO-297) utilizes 3D NAND for higher capacity up to 960GB and provides more power efficiency than 2D NAND with compact form factor and great performance. Designed in SATA 6 Gb/s interface, the MO-297 SSD is able to deliver exceptional read/write speed, making it the ideal companion for heavy-loading embedded or server operations with space constraints for host computing systems.

Regarding reliability, SV240-297 is implemented with LDPC (Low Density Parity Check) ECC engine to extend SSD endurance and increase data reliability. In addition, the drive comes with various implementations including power saving modes, global wear leveling, flash block management, S.M.A.R.T., TRIM, power failure management and Hyper Cache technology.

Model No.
SV240-297
Interface
SATA III 6.0 Gb/s
Capacity
120GB - 1TB
Flash Type
3D TLC
Endurance
3.000 P/E Cycles
Standard Temperature
0°C +70°C
Extended Temperature
-40°C +85°C
Performance
SR: 560MB/s | SW: 520MB/s
DRAM
No

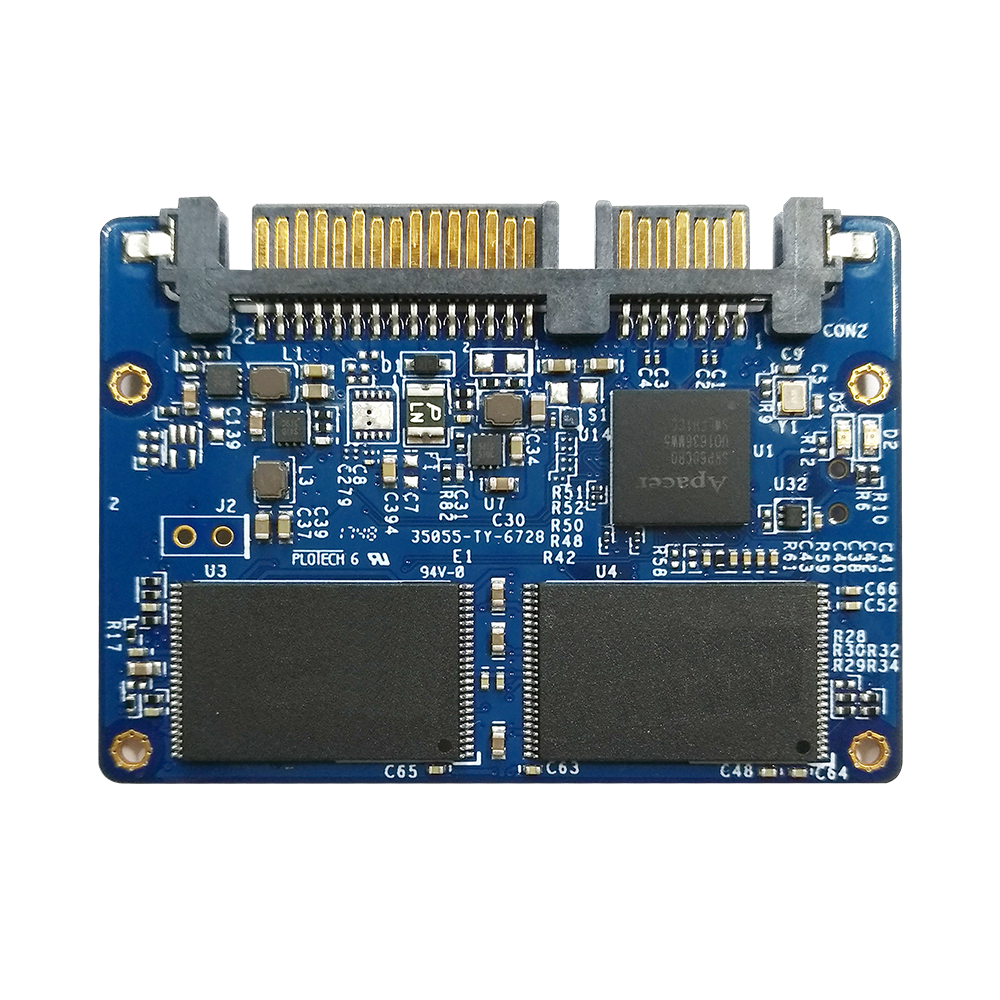

Apacer Slim SATA SATA III SSD ST170-297

Apacer's ST170-297 (JEDEC MO-297) is a well-balanced solid-state disk (SSD) drive with standard form factor and great performance. Designed in SATA 6.0 Gbps interface, the SSD is able to deliver exceptional read/write speed, making it the ideal companion for heavy-loading industrial or server operations. ST170-297 (JEDEC MO-297) utilizes 3D NAND for higher capacity up to 480GB and provides more power efficiency than 2D NAND. It is suitable for Embedded, POS, KIOSK and IPC applications to optimize its operating conditions featuring in high-speed, stability and power savings.

Model No.
ST170-297
Interface
SATA III 6.0 Gb/s
Capacity
30GB - 480GB
Flash Type
3D TLC
Endurance
3.000 P/E Cycles
Standard Temperature
0°C +70°C
Extended Temperature
--
Performance
SR: 560MB/s | SW: 505MB/s
DRAM
No
