CFAST

acon CFAST Card SATA III T/TX41

acon’s CFastTM delivers all the advantages of Flash Disk technology with the Serial ATA III interface and is fully compliant with the standard CFastTM form factor. Given the features of the low power consumption, small form factor, and high shock-resistance, acon’s CFastTM is an attractive solution to replace the conventional [PATA-interfaced] CompactFlash card in industrial applications or markets where performance is a major concern.
acon’s CFastTM consisting of a SATA-based 7-pin standard interface for data segment and 17-pin for power and controller segment, is designed to operate at a maximum operating frequency of 200MHz with 30MHz external crystal.

Model No.	T/TX41
Interface	SATA III 6.0 Gb/s
Capacity	64GB - 256GB
Flash Type	3D TLC
Endurance	3.000 P/E Cycles
Standard Temperature	0°C +70°C
Extended Temperature	-40°C +85°C
Performance	SR: 555MB/s \| SW: 490MB/s
DRAM	No

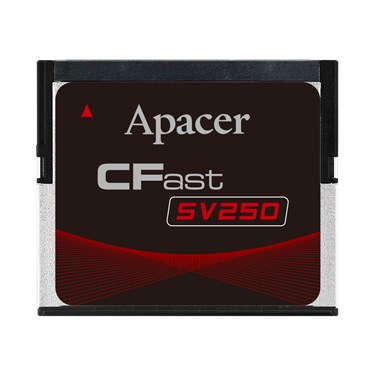

Apacer CFAST Card SATA III SV250

Apacer SV250-CFast 2.0 is the latest enhancement of conventional CFast form factor that delivers various technological advantages. It utilizes 3D NAND for higher capacity up to 480 GB and provides more power efficiency than 2D NAND. This new flash memory card comes with SATA 6.0 Gbps interface for higher performance and consists of SATA-based 7-pin signal segment and 17-pin for power and control purposes. Designed without DRAM on the internal controlling unit, SV250-CFast ensures data integrity by preventing data loss during a sudden power outage.

Model No.	SV250
Interface	SATA III 6.0 Gb/s
Capacity	30GB - 480GB
Flash Type	3D TLC
Endurance	3.000 P/E Cycles
Standard Temperature	0°C +70°C
Extended Temperature	-40°C +85°C
Performance	SR: 560MB/s \| SW: 515MB/s
DRAM	No
